Digital Milliohm Meter

SKU: MT985

4 Terminal Kelvin measurements
High resolution 0.1mΩ
Test current of 200mA
AC 750V / DC 1000V
AC / DC 400mA
Capacitance 1pF to 40mF
MIN / MAX
Relative mode
Data Hold
Continuity
Diode
4000 Count LCD
Bargraph and backlight
Low battery indication
Overload protection

Quantity

$ 313.00 ex. GST $ 344.30 in. GST

Add to Quote Find a Distributor

Add to wishlist

Details

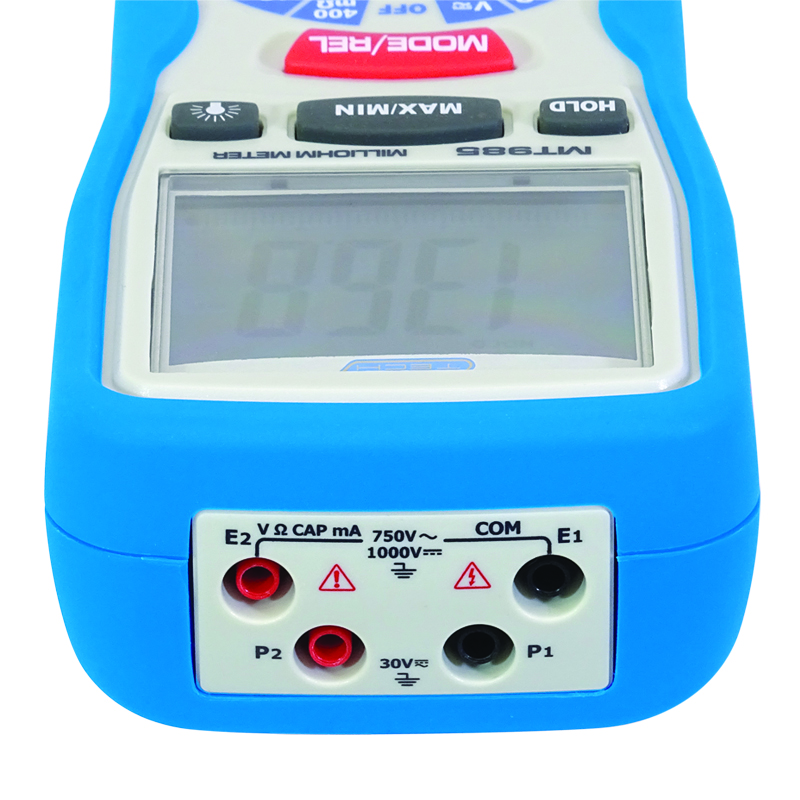

The MT985 Milliohm & Multimeter Tester measures low resistance from 400mΩ to 40Ω with a 0.1mΩ resolution and a test current of 200mΩ. This compact handheld unit provides fast and accurate measurements on a large high contrast 4000 count LCD Display with a bargraph and backlight. The MT985 also measures AC/ DC voltage, AC/DC current resistance, capacitance, continuity and diode test offering excellent performance and is ideal for any industry.

Specifications:

Function	Range	Resolution	Accuracy
Low Resistance	0.1m? – 40?	0.1m?	±(1% + 10 Digits)
DC Voltage	0.1mV – 1000V	0.1mV	±(1% + 5 Digits)
AC Voltage	0.1mV – 750V	0.1mV	±(1.2% + 10 Digits)
DC Current	0.1µA – 400mA	0.1μA	±(1.0% + 2 Digits)
AC Current	0.1µA – 400mA	0.1μA	±(1.5% + 5 Digits)
Resistance	0.1? – 40M?	0.1?	±(1.0% + 4 Digits)
Capacitance	1pF – 40mF	1pF	±(5.0% + 20 Digits)
Output Current	220mA – 2mA
Digital Display	Large LCD Display
Continuity	Yes
Diode Test	Yes
Bargraph	Yes
Overrange Indication	Yes
Min Max	Yes
Data Hold	Yes
Back Light	Yes
Enclosure	Double moulded case
Low Battery Indication	Yes

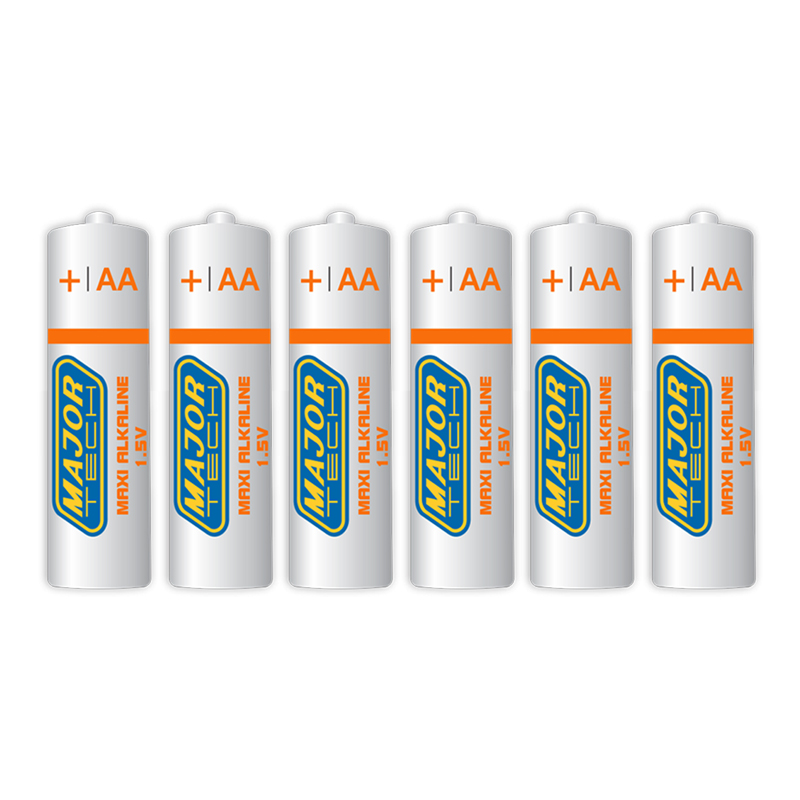

Batteries	6 x AA
Weight	700g
Dimensions	200 x 92 x 50mm
Safety Specs	IEC61010-1 CAT III 1000V
