Industrial Multimeter

SKU: MT1882

  • IP67 Overmould Dust & waterproof
  • Auto range with manual override
  • Temperature between -200°C to 1300°C
  • Measures frequency range of 10Hz to 10MHz on electronic and electrical circuits
  • Measures AC and DC voltage to 1000V
  • Capacitance to 4000μF / Relative mode / Data hold

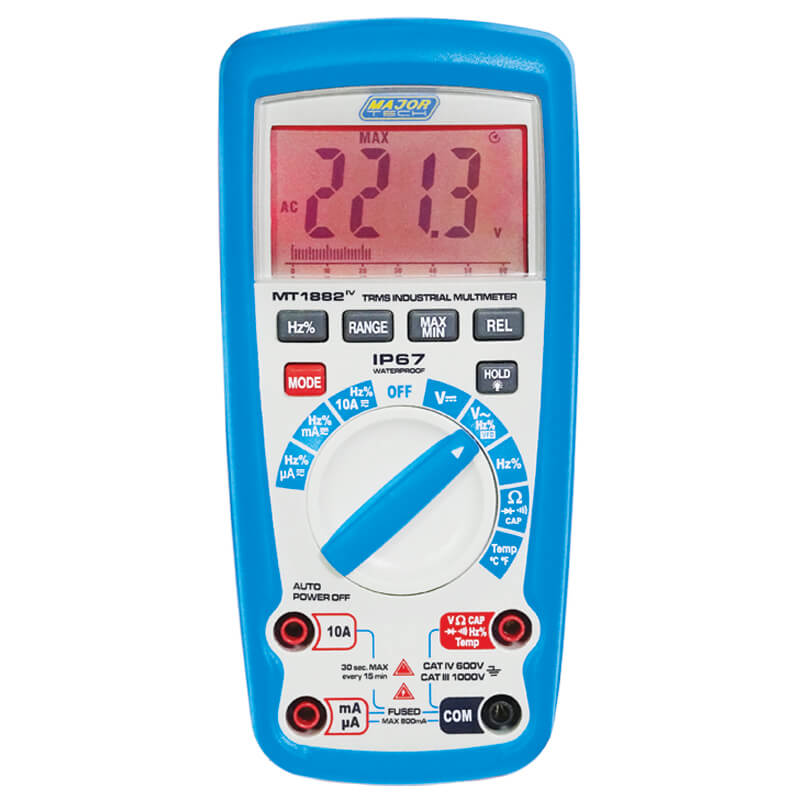

  • NCV detection above 110V AC, LCD turns red to indicate presence of voltage
  • MIN/MAX recording mode
  • Measures resistance up to 60MΩ
  • 6000 Count LCD display with a 61 segment analogue bargraph
  • Full ranges protection & Auto power off
  • Integrated test lead holder
  • Blue backlight for dimly lit areas

$ 259.00 ex. GST $ 284.90 in. GST

Details

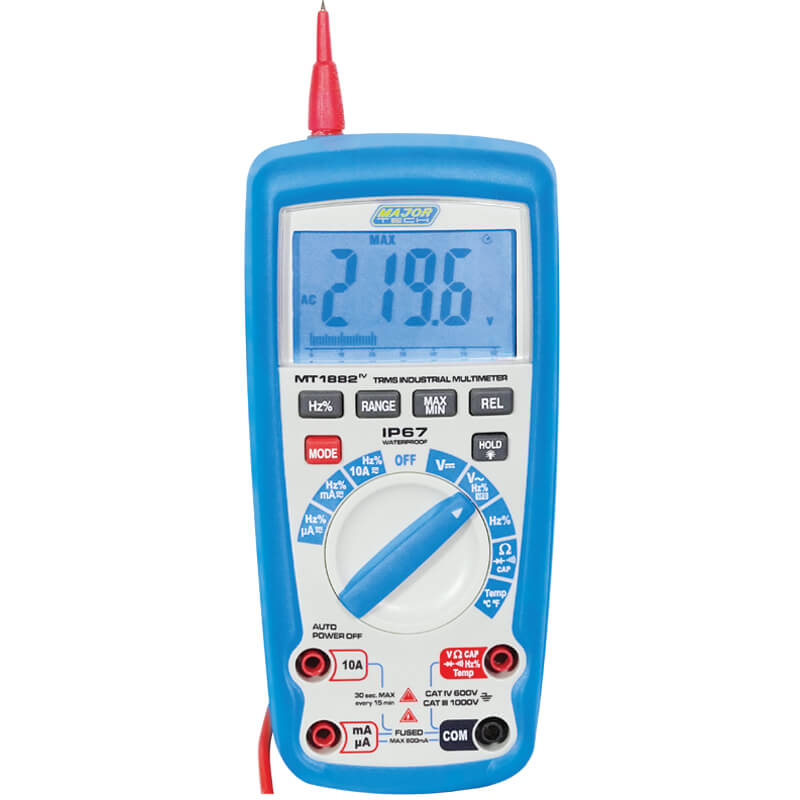

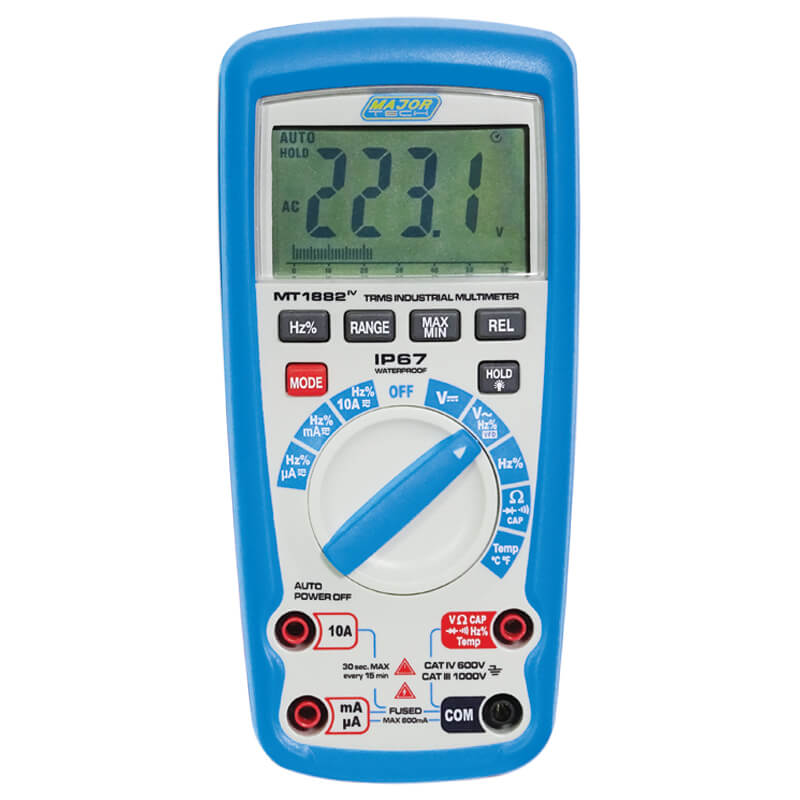

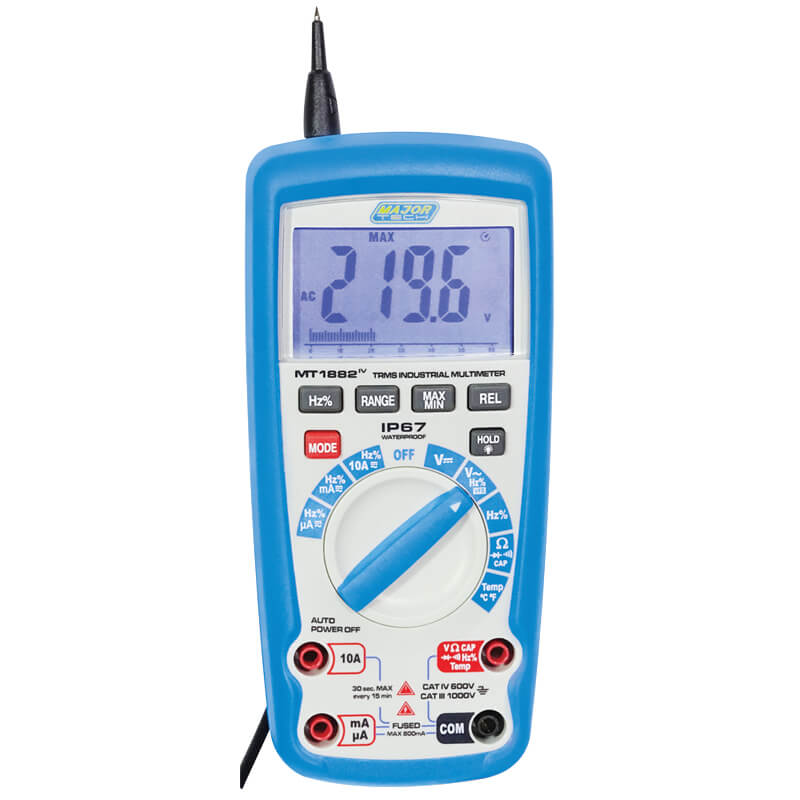

The MT1882 is a True RMS professional multimeter especially designed for everyday use by HVAC technicians and electricians, whilst offering voltage measuring ranges up to 1000V AC and DC and with useful measuring ranges of Temperature, Resistance, AC/DC Current, Capacitance and Frequency. NCV function, automatic Non-Contact voltage detection, the LCD backlight will glow red when AC voltage above 110V is sensed. The large 6000 count backlit LCD display with a 61 segment bargraph ensures that readings are easy to read under all circumstances. The meter has been designed that should a user turn the rotary switch in any direction whilst an input of up to 1000V AC/DC is applied to the meter, the meter will not get damaged. The meter has a double moulded rubber case with IP67 waterproof and dustproof rating, rugged design for heavy duty use.

Specifications:

Function Range Resolution Accuracy
DC voltage 0.01mV – 1000V 0.1mV ± (0.5% + 5 Digits)
AC voltage 1mV – 1000V 0.001V ± (0.8% + 4 Digits)
AC voltage (VFD)  50V – 600V 0.1V ± (4% + 9 Digits)
DC Current 0.1μA – 10A 0.1μA ± (1.0% + 3 Digits)
AC Current 0.1μA – 10A 0.1μA ± (1.5% + 3 Digits)
Duty Cycle 0.1 to 99.9% 0,1% ± (1.2% + 2 Digits)
Resistance  0.1? – 60M? 0.1? ± (0.8% + 2 Digits)
Frequency  0.001Hz – 10MHz 0.001Hz ±(1% +4 Digits)
Capacitance  0.01nF – 60mF 10pF ± (4.0% + 5 Digits)
Temperature -200 to 1300°C 0.1°C ± (3.0% + 5 Digits)
True RMS Measurements Yes
AC Bandwidth 50Hz to 400Hz
Digital Display 6000
Bargraph Yes
Continuity Yes
Diode test Yes
Non-Contact Voltage (NCV) Yes
Overrange indication Yes
Input impedance >10M? VDC & >10M? VAC
Min Max Yes
Data Hold Yes
Enclosure Double moulded waterproof IP67
Low battery indication Yes
Power source 6LF22
Weight 342g
Dimensions 187 x 81 x 50mm
Safety Specs IEC61010-1 CatIV 600V

Safety Rating

Warranty

Accessories:

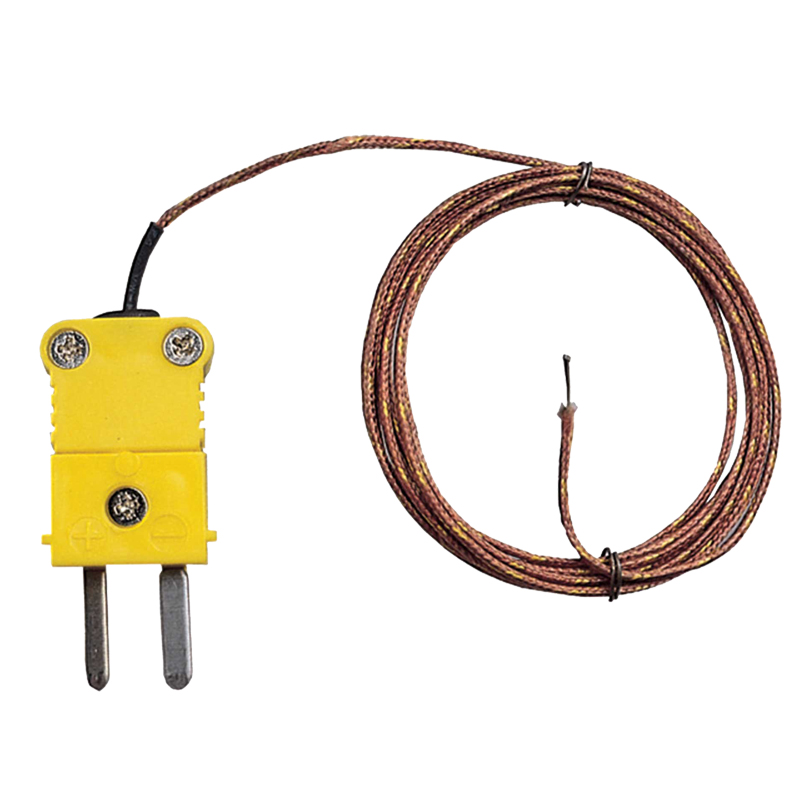

  • Type K Temperature Probe

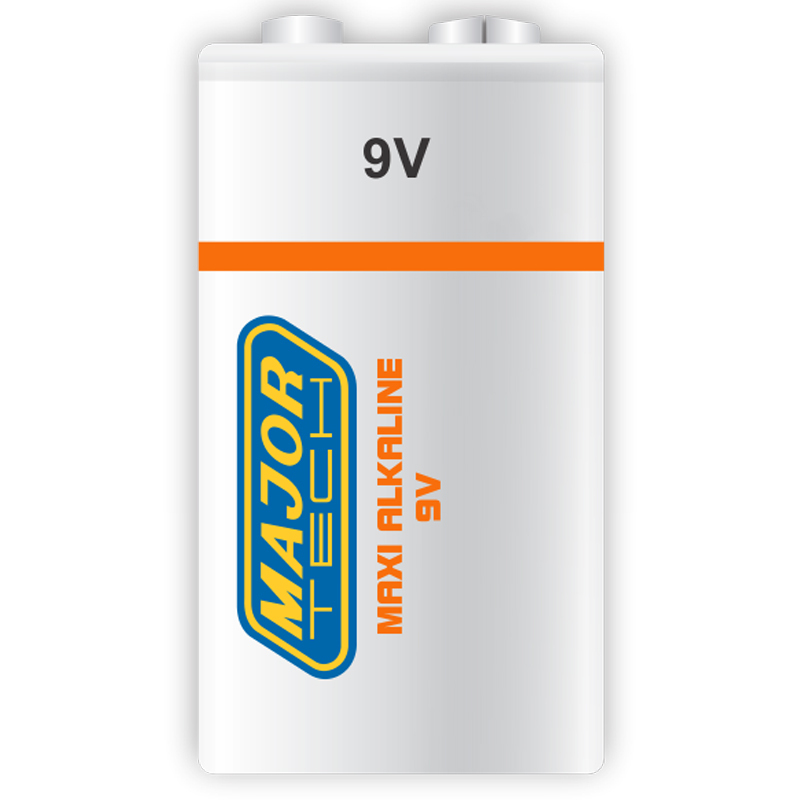

  • 9V Battery

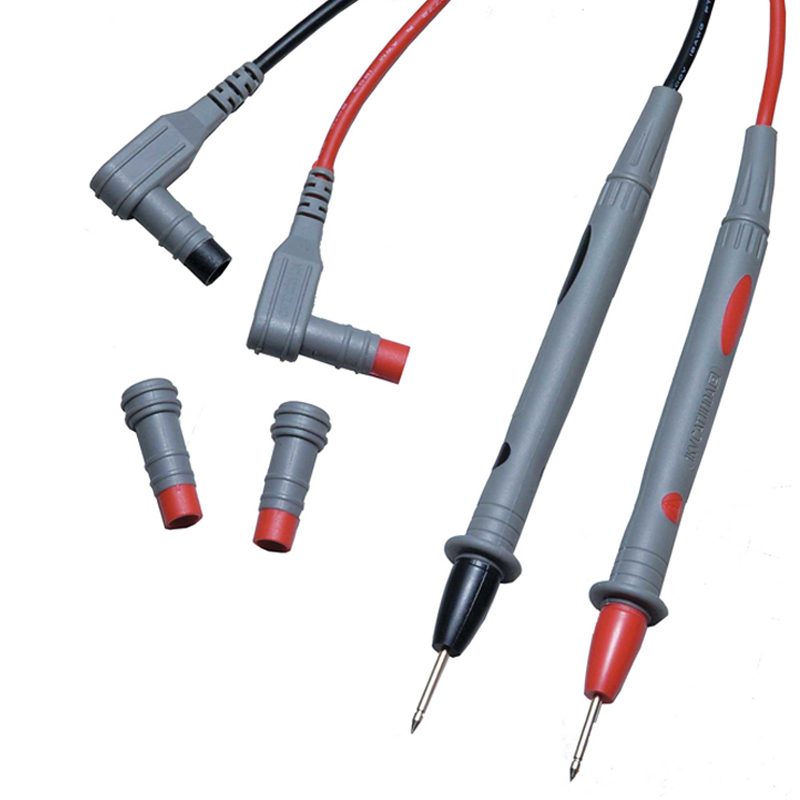

  • MT810 Test Leads
  • Instruction Manual

Optional Accessories:

  • MT684 IR Probe -30°C~550°C
  • MT680 K-Type Air Probe
  • MT682 K-Type Pipe Clamp Probe
