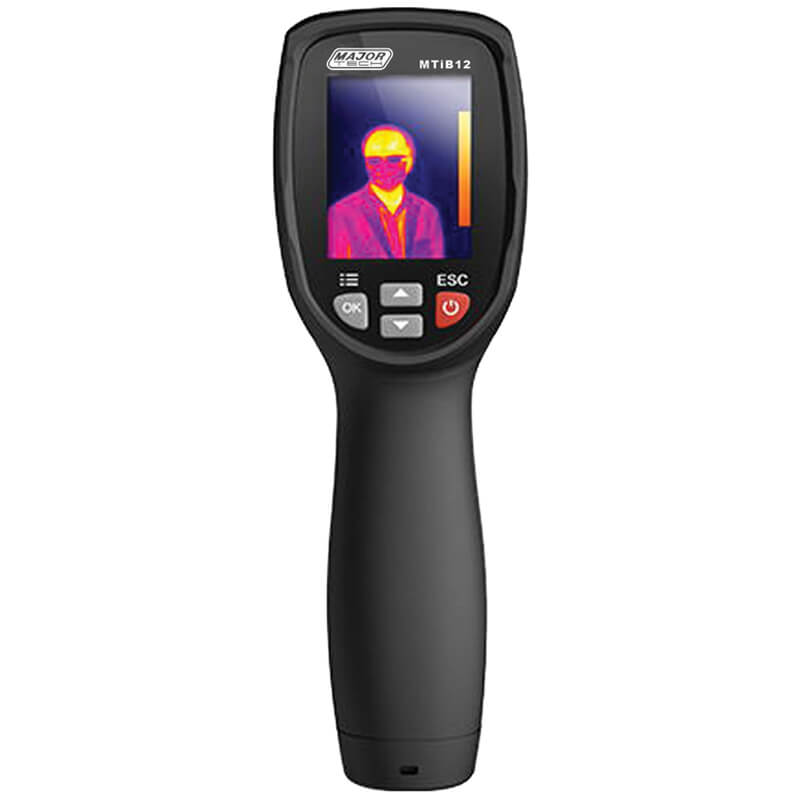

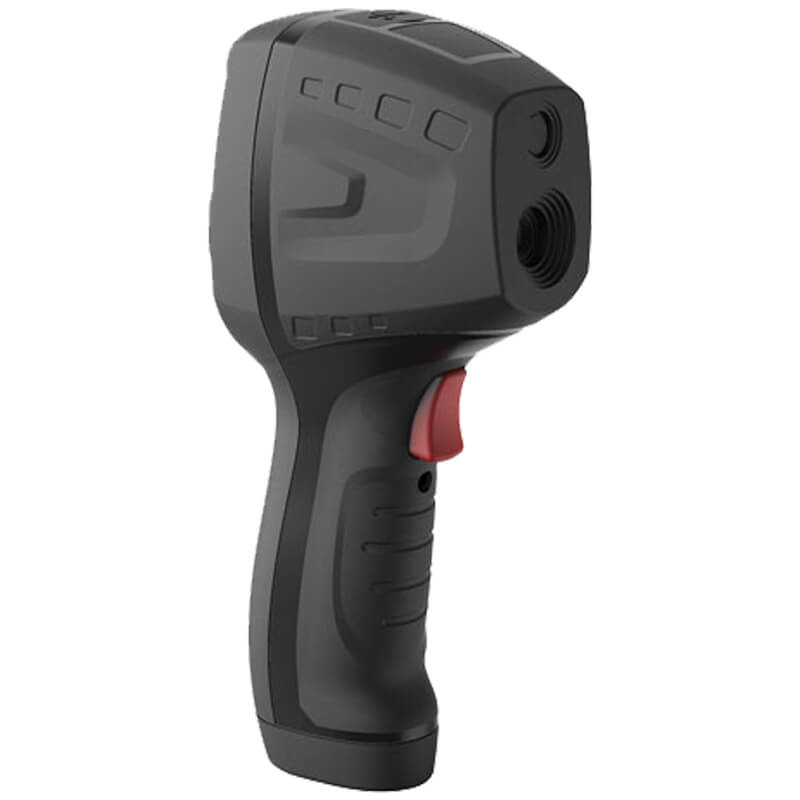

Body & Surface Thermal Imager

SKU: MTiB12

80 x 80 pixel thermal imaging system
6400 points real temperature fast measurements
Screening Temperature mode 32 to 42°C
Measuring Accuracy: ±0.5°C
Thermal sensitivity: <0.1°C | 300°C / 100mK
50Hz fast Thermal image frame rate
Hot, Cold, Centre three temperature tracking function
Large, easy-to-read, bright graphical TFT display
Bluetooth image instant share & save with iOS and Android smart device
Scene temperature range Lock function.
With LED flashlight function
Long running time up to 8 hours with rechargeable battery
Smart and compact design
Rugged industrial design

Quantity

$ 1 899.00 ex. GST $ 2 088.90 in. GST

Add to Quote Find a Distributor

Add to wishlist

Details

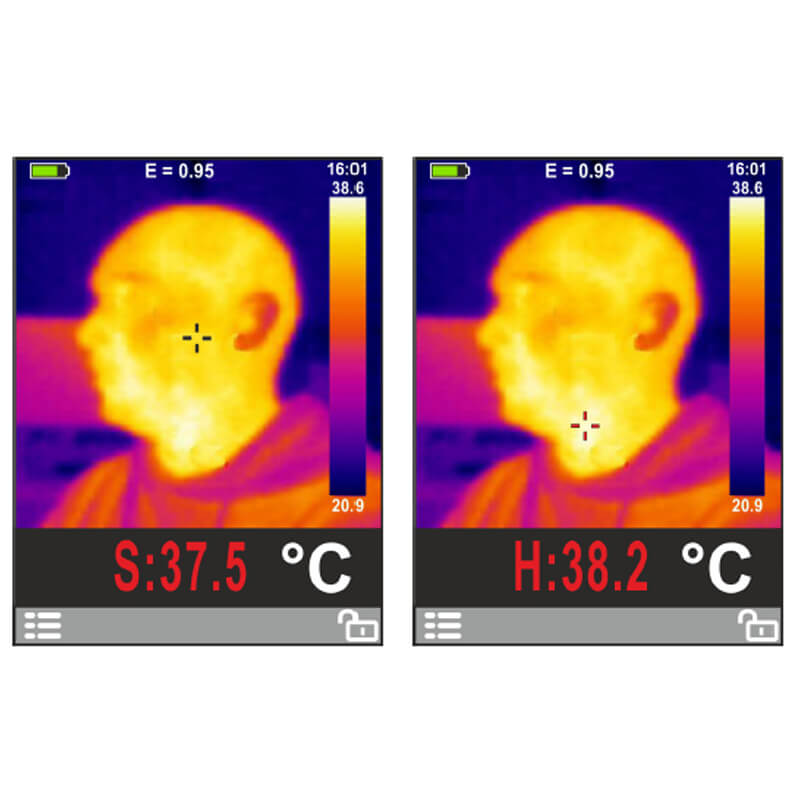

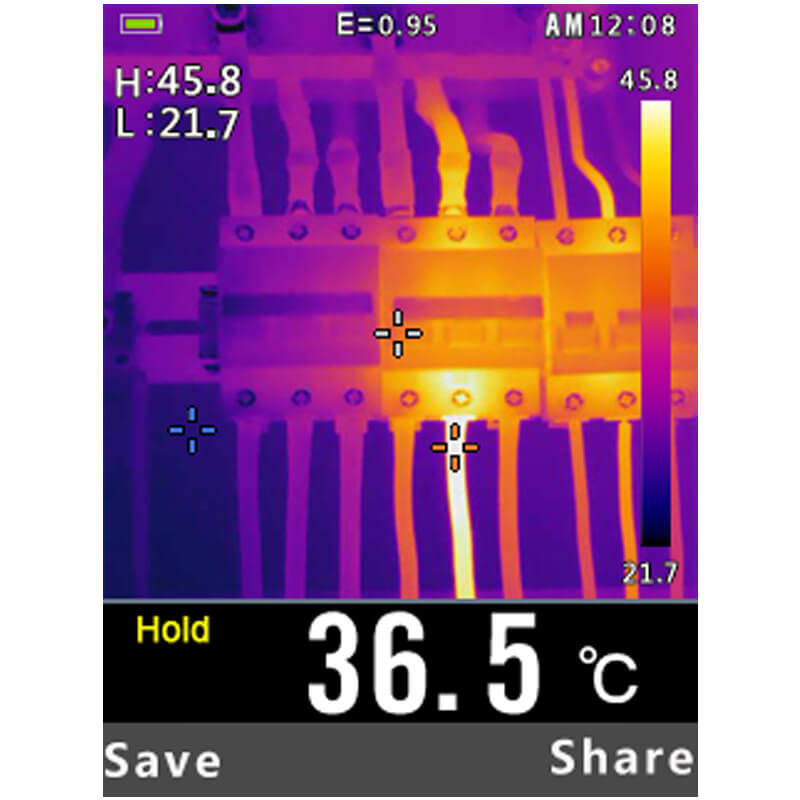

The MTiB12 Body & Surface Thermal Imager is a handheld thermal imaging camera used for measuring body temperature and can also be used for predictive maintenance, equipment troubleshooting and verification. The MTiB12 features a 20mS sampling rate and is ideal for scanning multiple targets. The adjustable High alarm makes it easy to instantly identify a person in a group that has an above average temperature. Thermal images are displayed on the LCD display and can be saved on the internal memory. With Bluetooth and an instant share function, the thermal images can be transferred to one’s smart phone to analyze, share and perform quick reporting.

Specifications:

Function	Range
Imaging and Optical Data
Field of View	21° x 21°
Spatial Resolution (IFOV)	4.53mrad
Thermal Sensitivity/NETD	<0.1°C @ +30°C / 100mK10.12:1
Image Range	50Hz
Focus mode Manual
Focus Mode	Focus Free
Focal Length	7.5mm
Focal Plane Array (FPA)/Spectral Range	Uncooled microbolometer / 8-14um
IR Resolution	80 x 80 pixels
Image Presentation
Display	22 colour TFT LCD, 240 x 320 pixels
Image Modes	IR Image
Colour Palettes	Iron, Rainbow, Grey, Grey Inverted, Rainbow high contrast
Measurement
Temperature Range	-20°C to +380°C
Temperature Accuracy	± (2.0% +2°C)
Body Temperature Range	+32°C to +42°C
Body Temperature Accuracy	± 0.5°C
Storage
Images Format	Bitmap (BMP) including measurement data
Size	175 x 58 x 70mm
Weight	450g
