Oscilloscope and True RMS Multimeter

SKU: MT1009

  • Large 50,000 Count 320 x 240 TFT colour LCD display/ Low pass filter/ IP67 Rating
  • 10MHz / 50MS/s Bandwidth/ Real time sample rate
  • Logging function with Trend Capture for easy review of logged data
  • Bluetooth PC interface for easy data transfer & accuracy calibration
  • 100kHz Bandwidth (voltage/current)
  • AC, AC+ DC, True RMS measurements
  • Peak capture (records transients as fast as 250μs)
  • Min/Max/Average with Time stamp (records signal fluctuations)
  • Motor winding and low ohm (50Ω) measurement range
  • The Meter-X App supports bluetooth products transferring the measured data to the         customers’ smart phone

$ 1 840.00 ex. GST $ 2 024.00 in. GST
Add to Quote Find a Distributor

Details

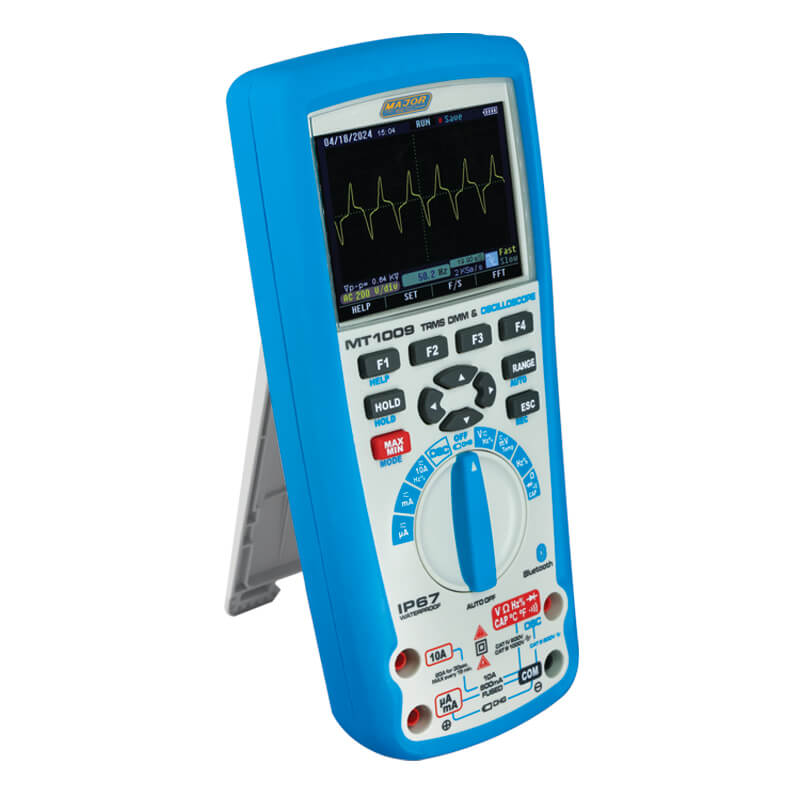

The MT1009 high accuracy True-RMS multimeter has fast sampling time, built-in data logging and Trend Capture features. It includes a 10MHz oscilloscope displayed on a colour screen. Using Bluetooth technology the captured data can be transferred to a computer for analysis of the datasheets. The oscilloscope function has a 10MHz bandwidth with a 50MS/s Real Time sample rate and cursors to assist the user with zoom in measurements – all displayed on a colour TFT display, this meter enables the user to trace and identify problems on equipment and with the data logging & Trend Capture functions, it can be utilised as a standalone unit to log events. The meter is housed in a double moulded rubber casing with an IP67 waterproof design.

Specifications:

Function Range Resolution Accuracy
DC voltage 1mV – 1000V 1mV ± (0.05% + 20 Digits)
AC voltage 1mV – 1000V 1mV ± (0.3% + 25 Digits)
AC + DC TRMS voltage 50mV – 1000V 0.01μA ± (3.5% + 25 Digits)
AC Current 0.01μA – 10A 0.01μA ± (0.6% + 25 Digits)
Duty Cycle 0.1 to 99.90% 0,01% ± (1.2% + 2 Digits)
Resistance 0.01? – 50M? 0.001? ± (0.5% + 20 Digits)
Frequency 0.001Hz – 10MHz 0.001Hz ± (0.01% + 10 Digits)
Capacitance 5nF – 10mF 0.001nF ± (2.0% + 40 Digits)
Temperature -50 to 1000°C 0.1°C ± (1.0%+ 25°C)
True RMS Measurements AC, AC+DC
AC Bandwidth 50Hz to 100KHz
Digital Display 50000
Bargraph Yes
Bluetooth Yes
PC Interface Yes
Records events and Trends Yes
Data logging Yes
Continuity Yes
Diode test Yes
Overrange indication Yes
Input impedance >10M? VDC & >9M? VAC
Low Pass filter Yes
Min Max Yes
Peak hold 250μs
Enclosure Double moulded waterproof IP67
Low battery indication Yes
Power source 7.4V rechargeable
Dimensions 220 x 96 x 60mm
Safety Specs IEC61010-1 CatIV 600V

Safety Rating

Warranty

Accessories:

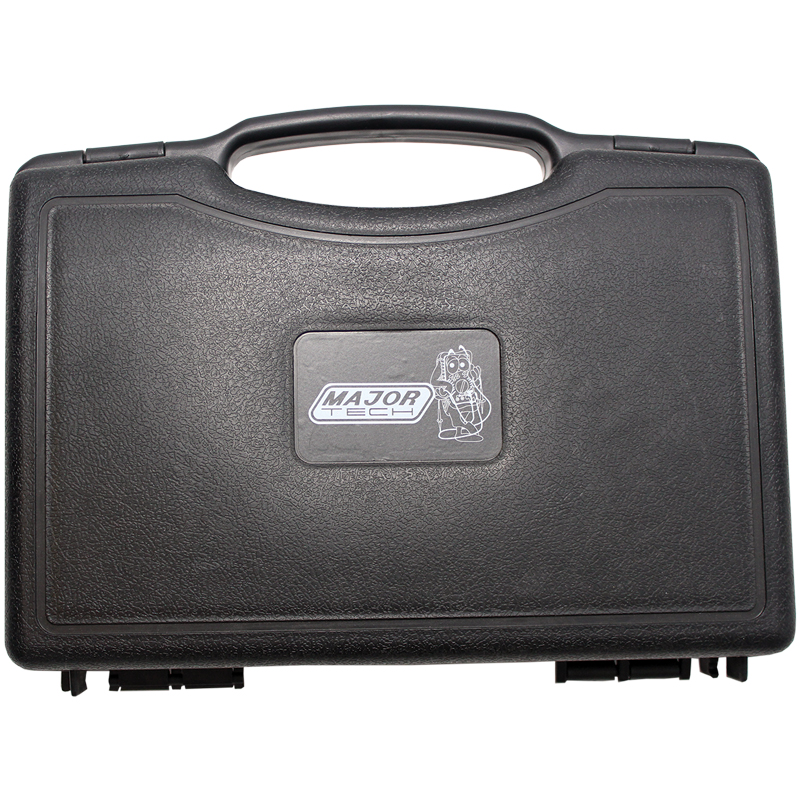

  • Carrying Case

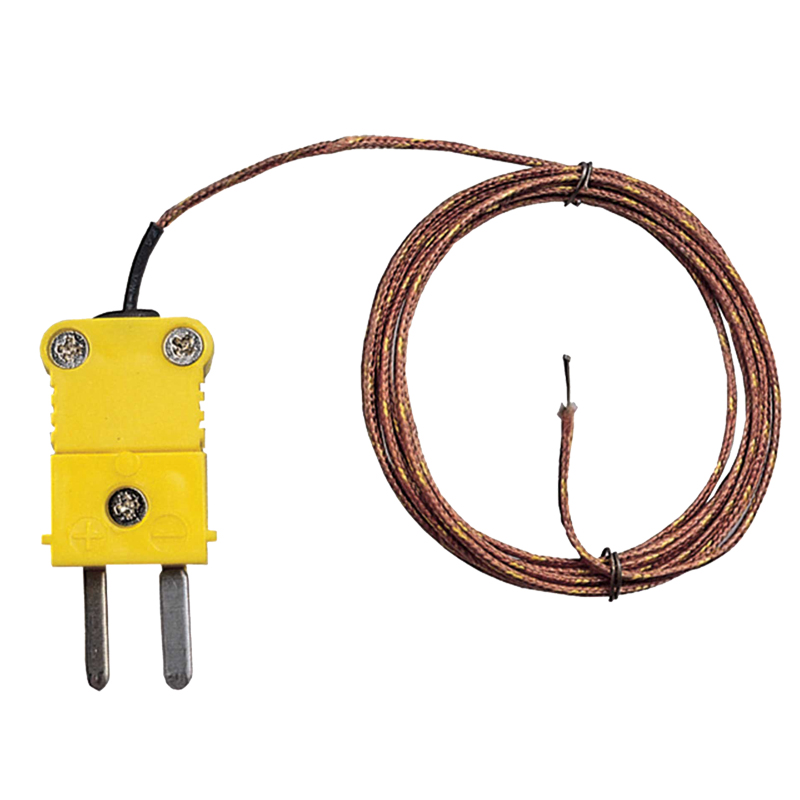

  • Temperature Probe
  • Battery Pack

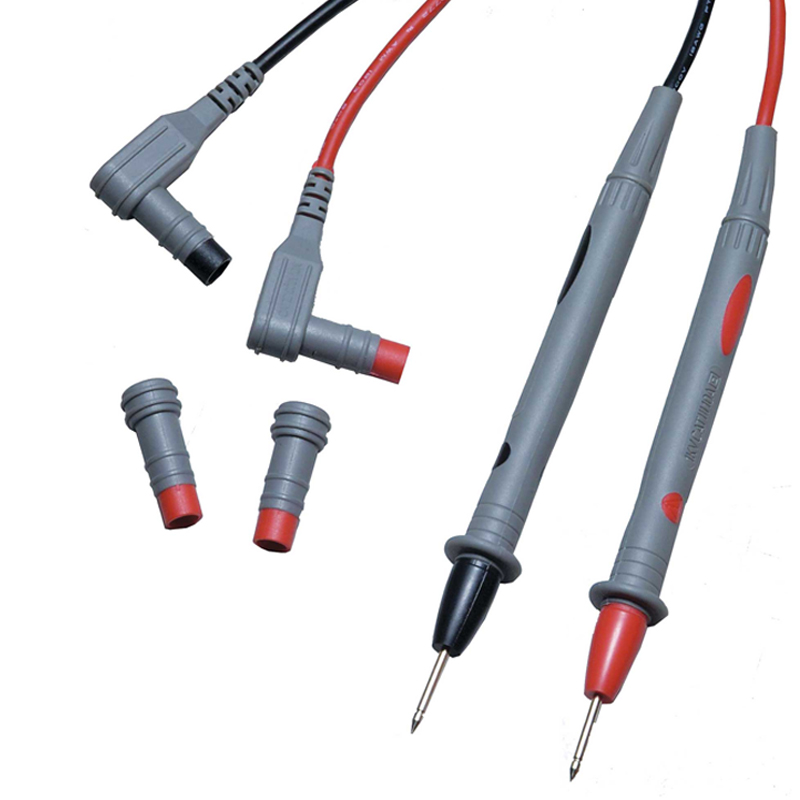

  • Test Leads
  • Instruction Manual
  • Charger
  • Software
  • USB Cable
  • 1 x Scope Probe
