Digital Insulation Tester

SKU: MT560

  • Four test ranges 125V-250V-500V-1000V
  • MIN/MAX Record mode
  • Measures AC Voltage to 750V and DV Voltage to 1000V
  • Large Dual LCD display with bargraph
  • Live Circuit detection prevents insulation tests if voltage >30V
  • Auto Null of test lead resistance
  • 1mA output current on insulation test
  • 200mA short circuit on continuity range
  • Continuity Buzzer
  • Automatic discharge of capacitive voltage after test for added protection
  • Data Hold function
  • Lock down Test Button for continuous use
  • Hands free strap and magnet supplied as standard accessories
  • Rubber overmould housing
  • Illuminated display

$ 380.00 ex. GST $ 418.00 in. GST
Add to Quote Find a Distributor

Details

The MT560 is a 1000V Digital Insulation Tester and  has a large dual display with a bargraph indicating the insulation resistance. This compact handheld meter has four test ranges: 125V, 250V, 500V and 1000V source for the test and under each range it can supply more than 1mA current to feed the capacitance load. The tester features AC and DC voltage ranges as well as a battery indication. Should AC voltage be present, the LCD display will indicate to the operator the AC voltage value, regardless of what range the meter is on except in the Off position. Other features include a data hold function, a bright white LED back light and a continuity buzzer.

Specifications:

Function Range Resolution Accuracy
DC voltage 1V – 1000V 1V ± (0.8% + 3 Digits)
AC voltage 1V – 1000V 1V ± (1.2% + 10 Digits)
Resistance 0.01? – 400? 0.01? ± (1.2% + 3 Digits)
Insulation resistance 125V 125V 0.125 – 4.000M? ± (2.0% + 10 Digits)
Insulation resistance 250V 250V 0.250 – 40.00M? ± (2.0% + 10 Digits)
Insulation resistance 500V 500V 0.500 – 400.0M? ± (2.0% + 10 Digits)
Insulation resistance 1000V 1000V 1.000 – 4000M? ± (3.0% + 10 Digits)
Short circuit current 1.0mA
Current measurement 0.01? – 400?
Overrange indication Yes
AC Bandwidth 40Hz – 400Hz
Digital Display Dual LCD Display
Continuity Yes
Auto discharge Yes
Bargraph Yes
Input impedance >10M? VDC & >10M? VAC
Data Hold Yes
Back Light Yes
Enclosure Double moulded
Low battery indication Yes
Power source 6 x R6
Weight 700g
Dimensions 200 x 92 x 50mm
Safety Specs IEC61010-1 CatIV 600V

Safety Rating

Warranty

Accessories:

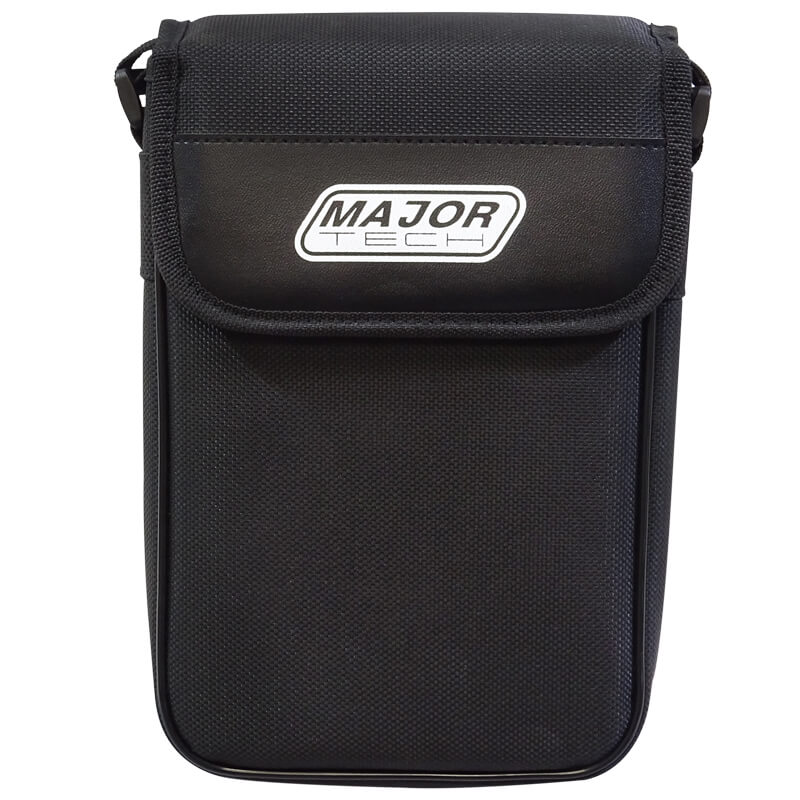

  • Carrying Case

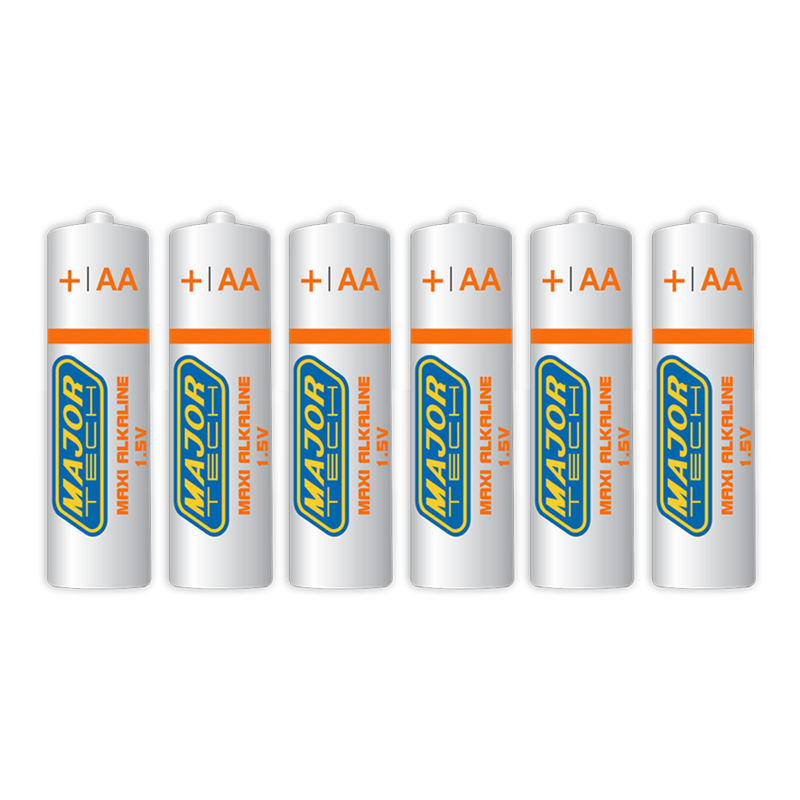

  • 6 x AA Batteries

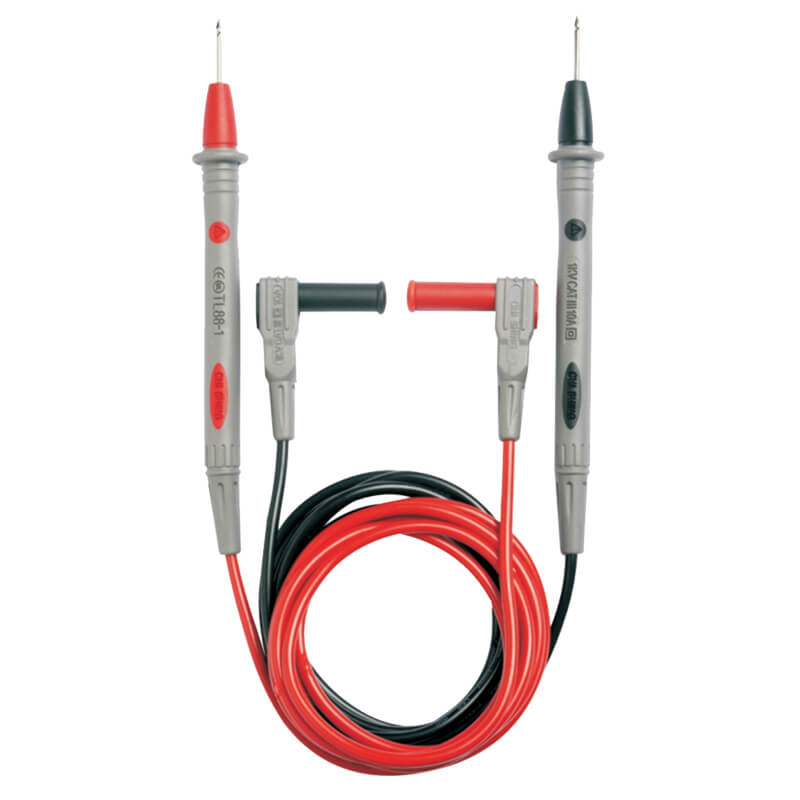

  • HDT1282 Test leads
  • Instruction manual

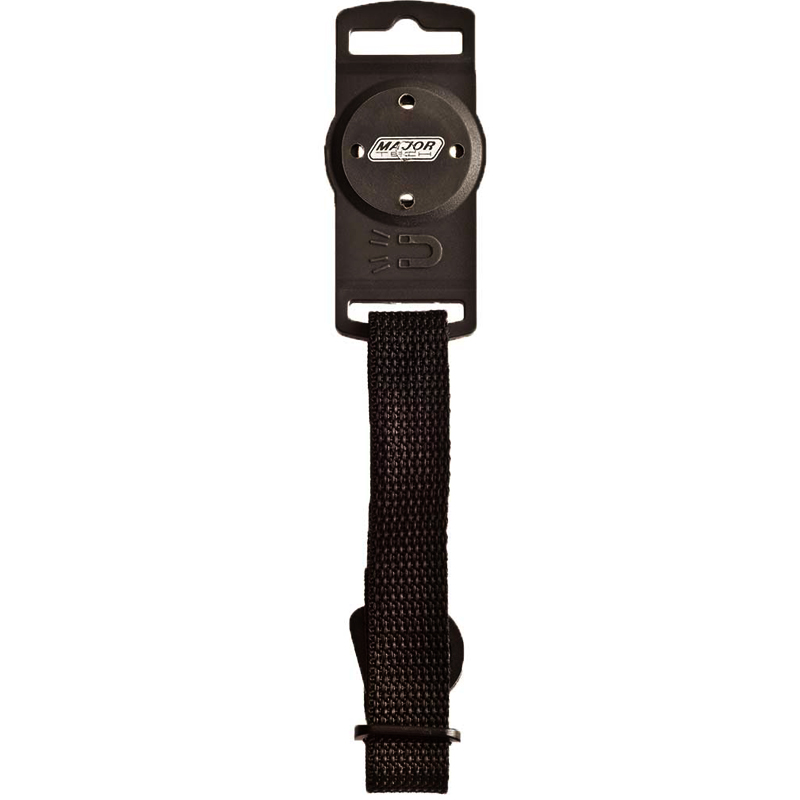

  • MTMAG Magnetic strip
  • Adjustable shoulder Strap

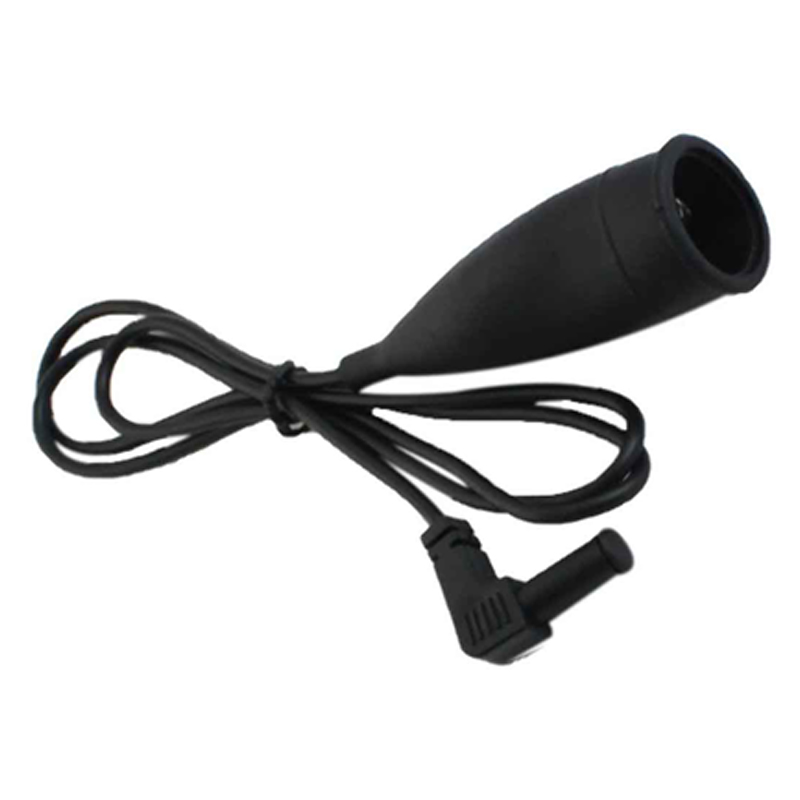

  • Line Probe with Alligator clip
