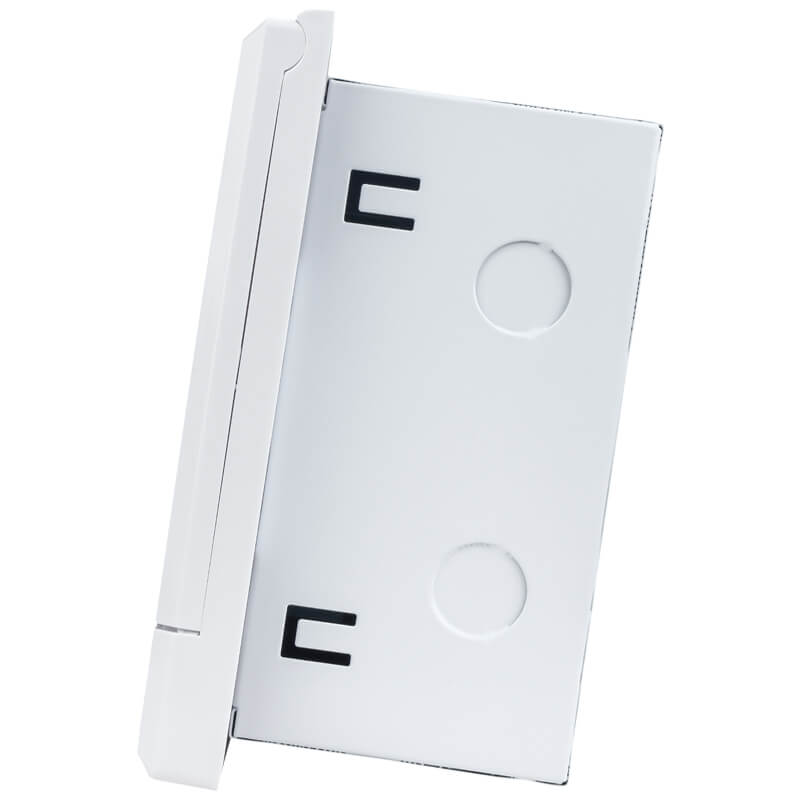

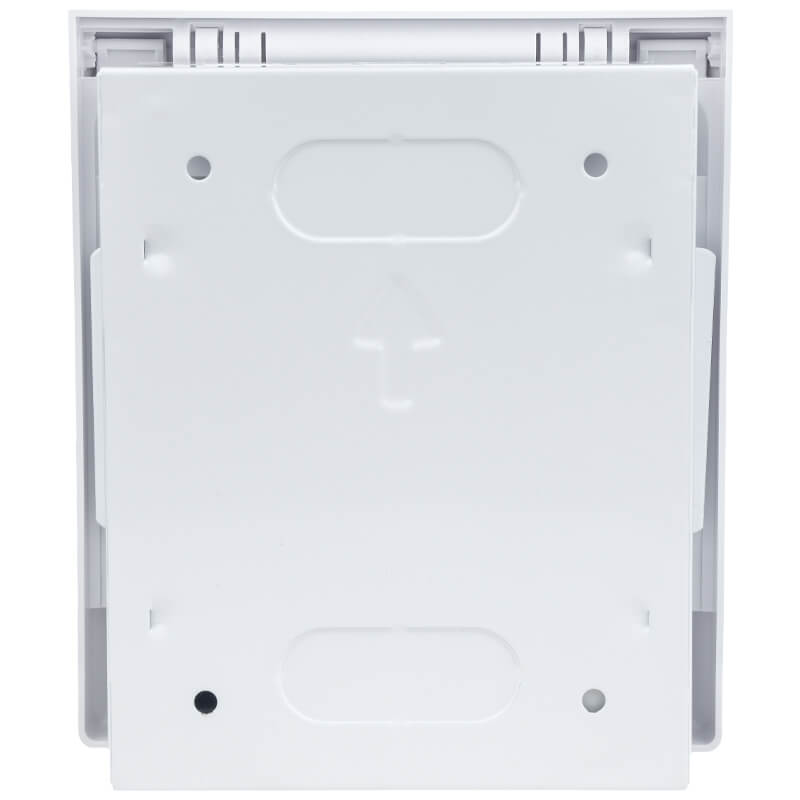

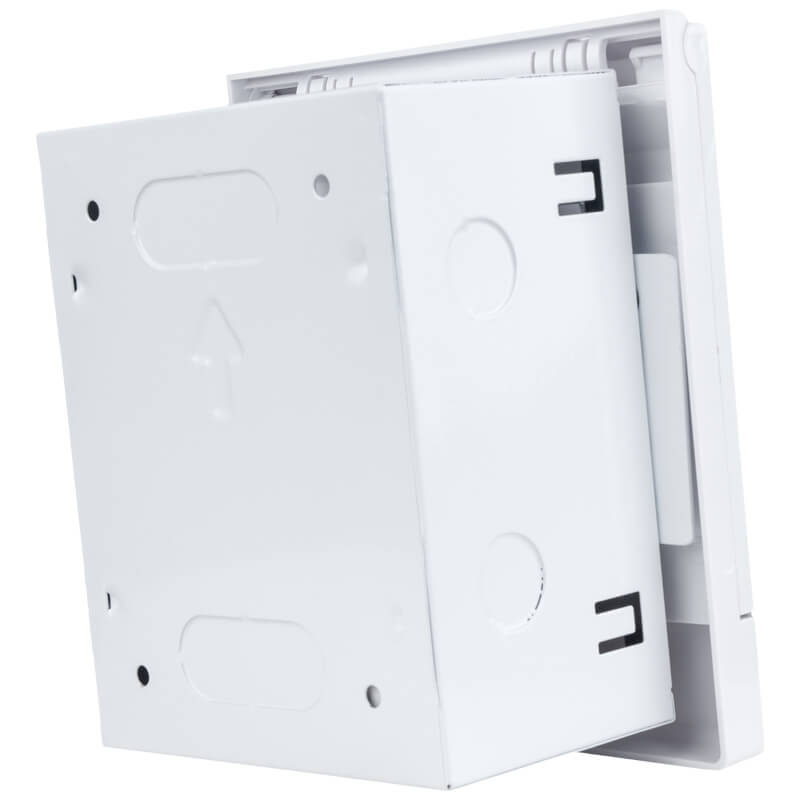

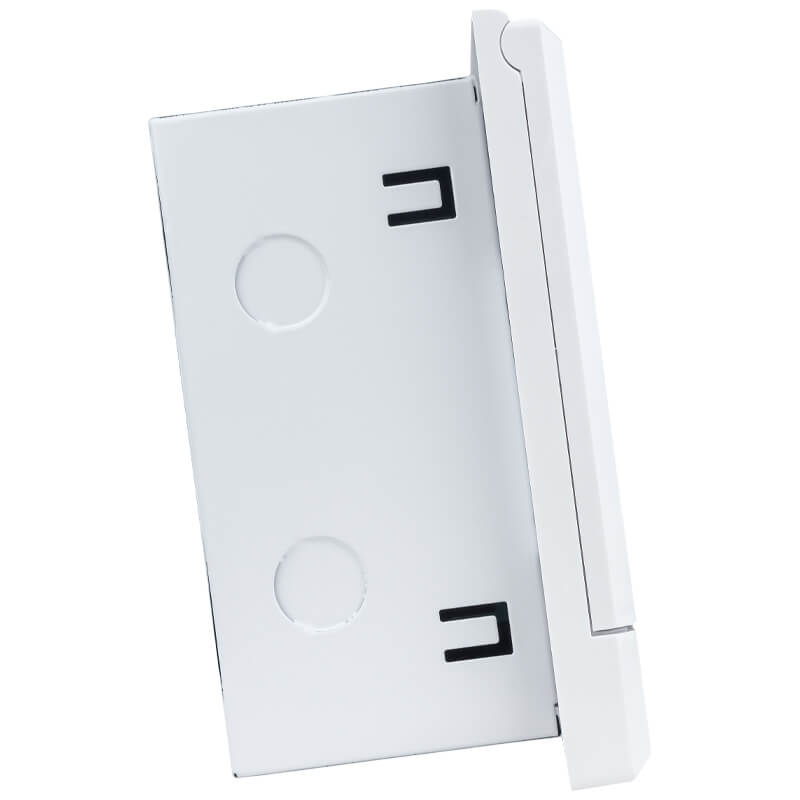

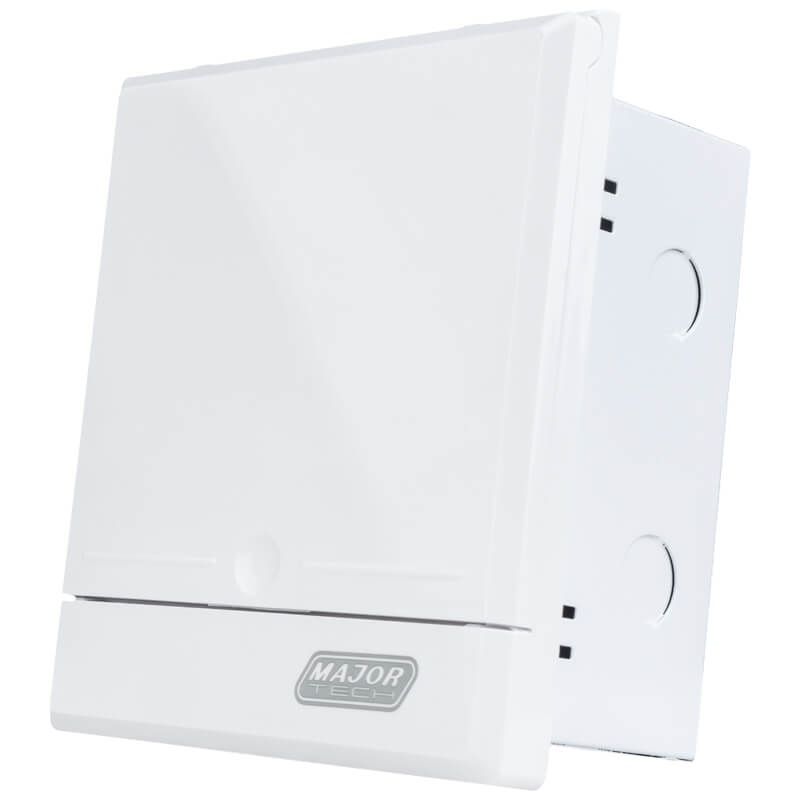

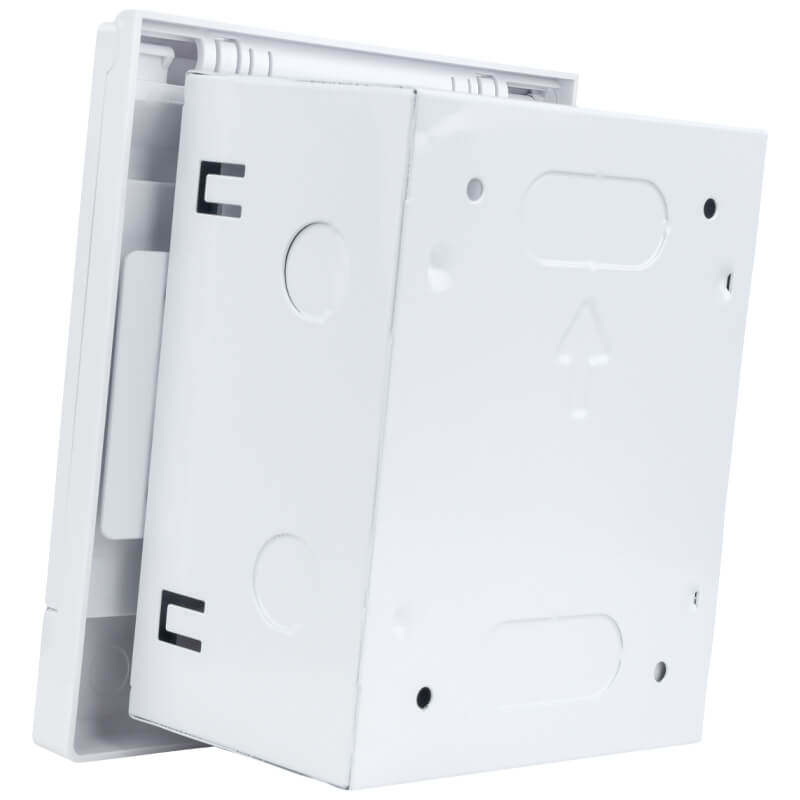

4 Pole Flush Mount Switchboard

SKU: VBM24FLA

  • Adjustable Cover & DIN Rail for an Easy & Level Installation
  • Effortless Push-To-Open Mechanism
  • Metal Tray Provides Strength & Durability
  • Label Circuits Clearly and Neatly for Easy Identification
  • Flush Mount
  • 4 pole DB Box
  • Adjustable Din Rail
  • 2 x 20mm & 8 X 25mm Knock out Sizes
  • 123mm x 152mm X 77mm Wall Box Size
  • Metal Tray, Plastic Cover, Copper Bar

$ 17.00 ex. GST $ 18.70 in. GST

Details

The VBM24FLA is an IP20-rated 4 pole Flush Mount distribution board, with a compact 1-row height, it can accommodate up to 4 individual 18mm modules, providing an efficient and reliable electrical distribution solution for your space. Crafted from high-quality, powder-coated iron, the durable metal tray ensures strength and longevity. Conforming to Australia's compliance standards AS/NZS 61439, AS/NZS 61000, the VBM24FLA distribution switchboard is equipped with an Earth & Neutral Bar, offering enhanced safety and reliability in electrical installations. The adjustable DIN rail and front cover simplify the installation process, ensuring a level and secure setup. Additionally, included distribution board labels make circuit identification easy, helping to maintain a tidy and organised electrical system. This VBM24FLA distribution board is the ideal choice for those seeking a robust, efficient, and organised electrical solution.

Specifications:

Function

Range

Pole

4 of 18mm modules

Rows

1

Dimensions

Overall

Wall



151 x 172 x 97mm

123 x 152 x 77mm

Mount

Flush

Mounting Support

Din Rail

Knock Outs

Top

Bottom

Right Side

Left Side



1x 20mm & 2x 25mm

1x 20mm & 2x 25mm

2x 25mm

2x 25mm

IP Rating

IP20

Material

Cover

Tray

Earth/Neutral Bar



High Quality Polycarbonate Plastic (PC)

Metal for increased strength and durability

Copper

Standard

AS/NZS 61439, AS/NZS 61000

Approval

CE, RoHS, HF test, ISO 9001

Safety Rating

Warranty

Accessories:

  • Distribution Board Labels
