2-In-1 Cable Finder and DMM

SKU: MT915

Identifies up to 16 cables
Cuts out “Bell-Out” time
Cable Resistance 30kΩ max
Digital multimeter
600V AC/DC
200mA AC/DC
Resistance 20MΩ
Diode Check
2000 Count LCD
Continuity

Quantity

$ 217.00 ex. GST $ 238.70 in. GST

Add to Quote Find a Distributor

Add to wishlist

Details

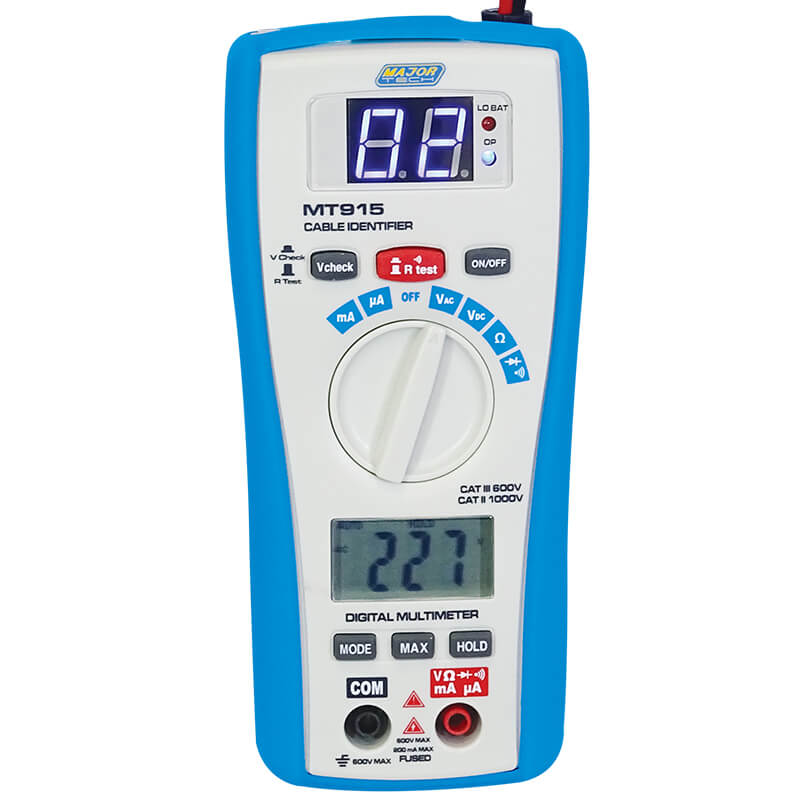

The MT915 is a cable identifier using a tracing system, which will save hours by eliminating the “Bell-Out” of any circuit. The MT915 consists of a transmitter & receiver device which enables one person to instantly match up ends of individual cores at either end of a multi-core cable. With the remote kit the meter can test cables installed over long distances either on wall plates or patch panels. The DMM function makes it easy to measure AC Volts, DC Volts, AC and DC Current, Resistance, Continuity and Diode Test.

Specifications:

Function	Range	Resolution	Accuracy
DC Voltage	0.001mV – 600V	0.1mV	±(0.5% + 3 Digits)
AC Voltage	1V – 600V	1mV	±(1.0% + 5 Digits)
DC Current	200.0μA – 200.0mA	0.1μA	±(1.5% + 3 Digits)
AC Current	200.0μA – 200.0mA	0.1μA	±(1.8% + 8 Digits)
Resistance	200.0Ω – 20MΩ	0.1Ω	±(1.2% + 3 Digits)
Overrange Indication	Yes
Input Impedance	>7.5MΩ VDC & >7.5MΩ VAC
Continuity	Yes
Diode Test	Yes
Cable Finder	16 channels; 30KΩ 1.8mA
Ac Bandwidth	50Hz – 60Hz
Digital Display	2000
Min Max	Yes
Back Light	Yes
Enclosure	Rubber Holster
Batteries	2 x AAA and 9V
Weight	315g
Dimensions	Multimeter: 162 x 74 x 43mm Transmitter: 130 x 69 x 32mm
Safety Specs	IEC61010-1 CAT III 600V
