1000V AC/DC True RMS Thermal Multimeter

SKU: MT2005

CAT IV 600V and CAT III 1000V
6000 count 2.8” TFT Colour LCD display
Built-in Thermal imager with MIN/MAX
50Hz fast Thermal image frame rate
DC voltage 1000V and AC Voltage 1000V
AC, AC+DC TRMS Voltage 1000V
DC Current 10A
AC Current 10A
Resistance 60Mꭥ
Capacity 6mF
Frequency 10MHz
Duty Cycle 95%
K-Type Temperature Range: -40 to 600˚C
Thermal Temperature Range: -20°C to 260°C
Flexible Coil AC Current 3000A
Diode Test and Continuity

Quantity

$ 1 815.00 ex. GST $ 1 996.50 in. GST

Add to Quote Find a Distributor

Add to wishlist

Details

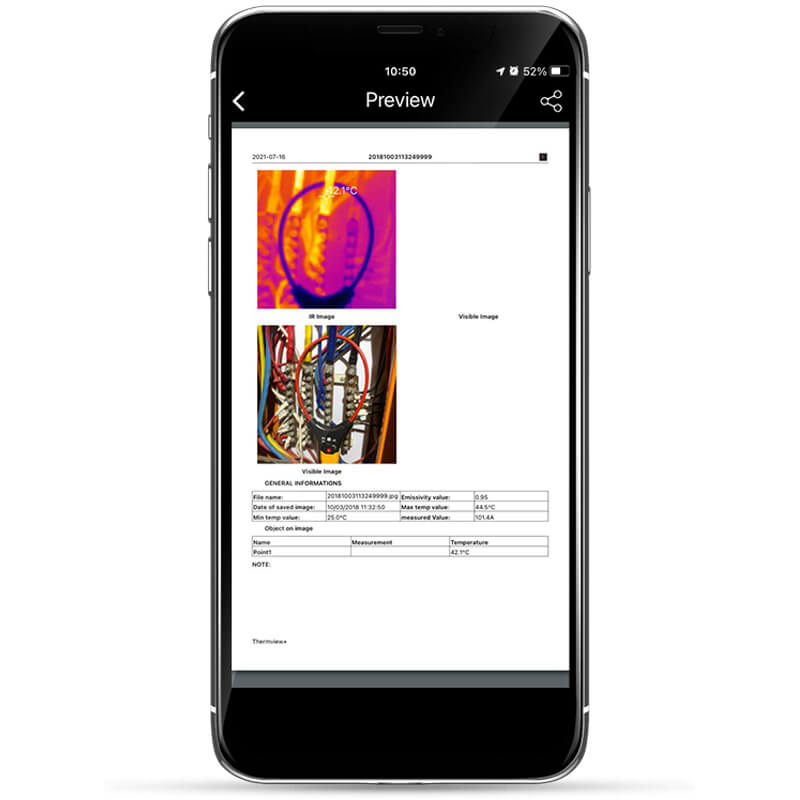

The MT2005 Professional True RMS Industrial Digital Multimeter with a built-in 120 x 120 Pixel Thermal Imager and TFT colour LCD display, provides fast A/D converting sampling time, with high accuracy. It is a fast and easy solution to find and solve problems with production equipment, providing Bluetooth BLE technology. It is a safe instrument with double moulded rubber housing and has an IP65 waterproof rating.

Specifications:

Function	Range	Resolution	Accuracy
Multimeter Function
DC voltage	0.1mV – 1000V	0.1mV	± (0.09% + 5 Digits)
AC voltage	0.001V – 1000V	0.1mV	± (0.8% + 5 Digits)
AC + DC TRMS voltage	0.001V – 1000V	0.001V	± (2.4% + 20 Digits)
DC Current	0.1μA – 10A	0.1μA	± (0.9% + 5 Digits)
AC Current	0.1μA – 10A	0.1μA	± (01.2% + 5 Digits)
Flexi Coil AC Current	0.01A – 3000A	0.01A	± (0.8% + 5 Digits)
Duty Cycle	5.0% to 95.0%	0,001	± (1.2% + 2 Digits)
Resistance	600.0Ω – 60MΩ	0.1?	± (0.5% + 5 Digits)
Frequency	0.01Hz – 10MHz	0.01Hz	± (0.09% + 5 Digits)
Capacitance	0.01mF – 6000μF	0.01nF	± (1.2% + 8 Digits)
Temperature	-40 – 600°C	0.1°C	±(1.5% +3°C)
Continuity	Yes
Diode test	Yes
True RMS Measurements	AC, AC+DC
AC Bandwidth	50Hz to 100KHz
Digital Display	6000 count 2,8″ TFT
Bargraph	Yes
Enclosure	Double injection IP65
Bluetooth	BLE 4.0
Records events and Trends	Yes
Data logging	Yes
Thermal Imaging Functions
Thermal Measurement
Temperature	-20°C – 260°C		±(1.5% +3°C)
Imaging and Optical Data
Field of View	21° x 21°/0.5m
Spatial resolution (IFOV)	4.53mrad
Thermal sensitivity/NETD	<0.1°C @ +30°C/100mK
Image Range	50Hz
Focus mode	Focus free
Zoom	1 x 32 x continuous, digital zoom
Focal Length	7.5mm
Focal Plane Array (FPA) / Spectral range	uncooled microbolometer / 8-14μm
IR Resolution	120 x 120 pixels
Image Presentation
Display	2.8″ LCD, 240 x 320 pixels
Image Modes	IR Image, Visual image
Colour Palettes	Iron, rainbow, rainbow HC, grey, grey inverted
Measurement analysis
Spot	Centre spot
Automatic hot/cold detection	Hot or cold markers
Emissivity correction	Variable 0.01 to 0.99
Measurement corrections	Emissivity, reflected temperature
Data Communications Interfaces
Interfaces	Bluetooth BLE
