1000V AC/DC TRMS Bluetooth Multimeter

SKU: MT1005

Large 50,000 count 320 x 240 TFT colour LCD display
Logging function with TrendCapture for easy review of logged data
Graph 100 Data review
Bluetooth interface for easy data transfer & accuracy calibration
10kHz bandwidth (Voltage/Current)
AC, ACV+DCV True-RMS measurements
Records events and trends
Saves measurements
A/D convert fast sampling time
Peak capture (records transients as fast as 250μs)
Min/Max/Average with Time stamp (records signal fluctuations)
4-20mA process loop measurements with % reading
Battery capacity indication
Date indication
Meter-X App

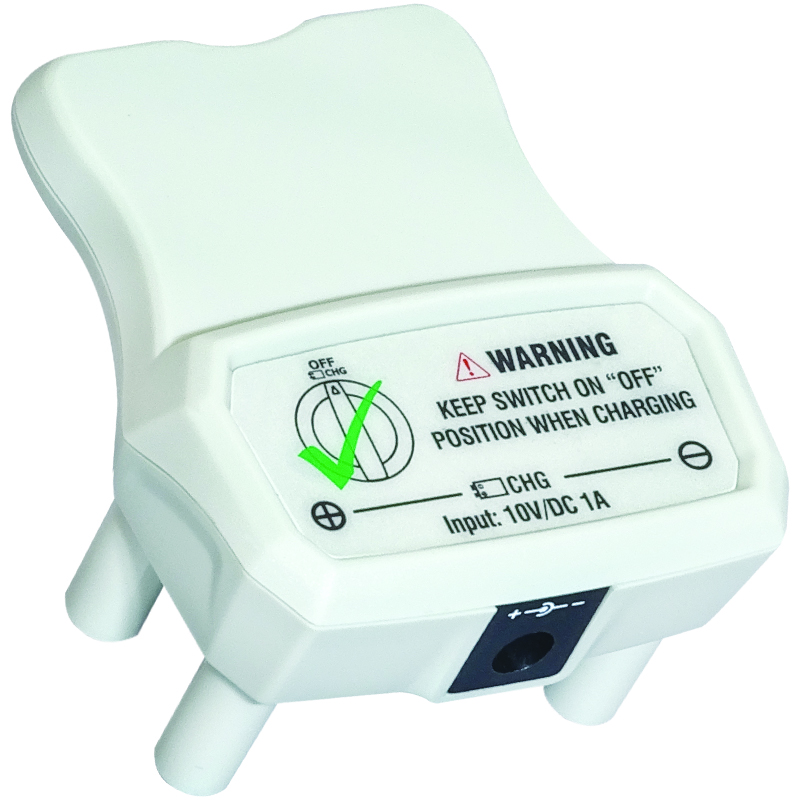

1 x Rechargable battery and charger included

Quantity

$ 595.00 ex. GST $ 654.50 in. GST

Add to Quote Find a Distributor

Add to wishlist

Details

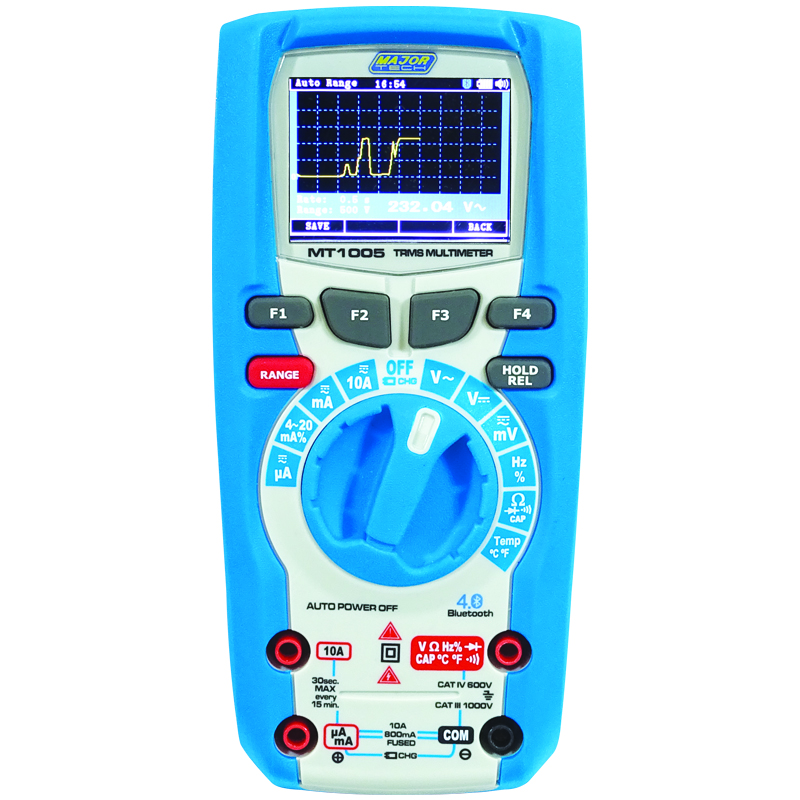

The MT1005 Heavy duty True RMS Industrial Digital Multimeter with TFT colour LCD display, provides fast A/D converting sampling time, high accuracy, built-in datalogging and Trend Capture features. It can trace any interruptions of the equipment and record events automatically unattended. It is easy to find and solve the problems with the Bluetooth technology and memories datasheets whilst providing safer measurements with the double moulded plastic housing design.

Specifications:

Function	Range	Resolution	Accuracy
DC voltage	0.01mV – 1000V	0.01mV	± (0.05% + 5 Digits)
AC voltage	0.01mV – 1000V	0.01mV	± (0.5% + 5 Digits)
AC + DC TRMS voltage	0.1mV – 1000V	0.1mV	± (1.2% + 20 Digits)
DC Current	0.01μA – 10A	0.01μA	± (0.2% + 5 Digits)
AC Current	0.01μA – 10A	0.01μA	± (0.8% + 5 Digits)
Duty Cycle	0.1 to 99.90%	0,01%	± (1.2% + 2 Digits)
Resistance	0.01Ω – 50MΩ	0.01Ω	± (0.2% + 5 Digits)
Frequency	0.001Hz – 10MHz	0.001Hz	± (0.01% + 5 Digits)
Capacitance	0.001nF – 10mF	0.001nF	± (1.0% + 8 Digits)

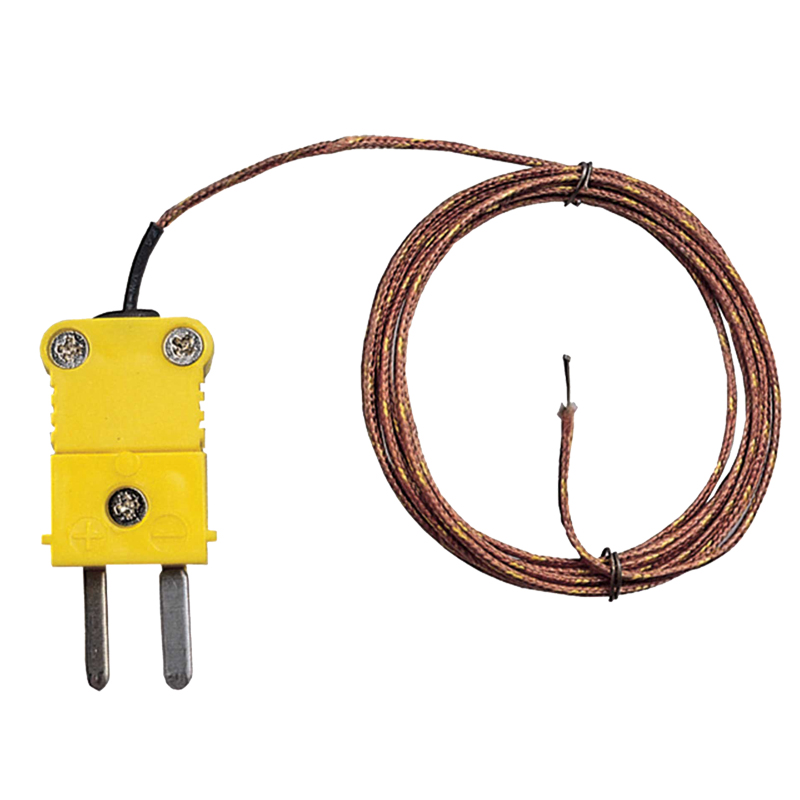

Temperature	-200 to 1350°C	0.1°C	± (1.0%+ 3 Digits)
True RMS Measurements	AC
4-20mA%	Yes
AC Bandwidth	50Hz to 20KHz
Digital Display	50 000 TFT
Bargraph	Yes
Bluetooth	Yes
Records events and Trends	Yes
Data logging	Yes
Continuity	Yes
Diode test	Yes
Overrange indication	Yes
Input impedance	>10MΩ VDC & >9MΩ VAC
Min Max	Yes
Peak hold	1ms
Enclosure	Double moulded
Low battery indication	Yes
Power source	7.4V rechargeable
Dimensions	170 x 79 x 50mm
Safety Specs	IEC61010-1 CatIV 600V
