1500V DC H&W Analysis Clamp Meter

SKU: MT785

6000 count TFT colour LCD display
Ø33mm Cable Clamp size
Measurement of AC and DC current up to 1000A
TRMS AC voltage to 1000V, DC voltage up to 1500V and AC+DC voltage TRMS measurements up to 1000V
Active, Reactive, Apparent Power & Power Factor on single phase
AC and DC Power measurements
Energy measurements on single phase – Active, Reactive and Apparent
Capacitance to 6000μF
Trend Capture Function
INRUSH Current Measurements
AC Voltage and Current Harmonics (1 – 25) and THD% up to 75Hz (1 – 8 above 75Hz)
LoZ – Low impedance mode prevents false readings due to “Ghost” voltage
NCV – Non-Contact Voltage Detector
Built-In Flashlight
Continuity buzzer and Diode Test
Peak Mode, Min/Max and Data Hold function
Auto Power Off

Quantity

$ 555.00 ex. GST $ 610.50 in. GST

Add to Quote Find a Distributor

Add to wishlist

Details

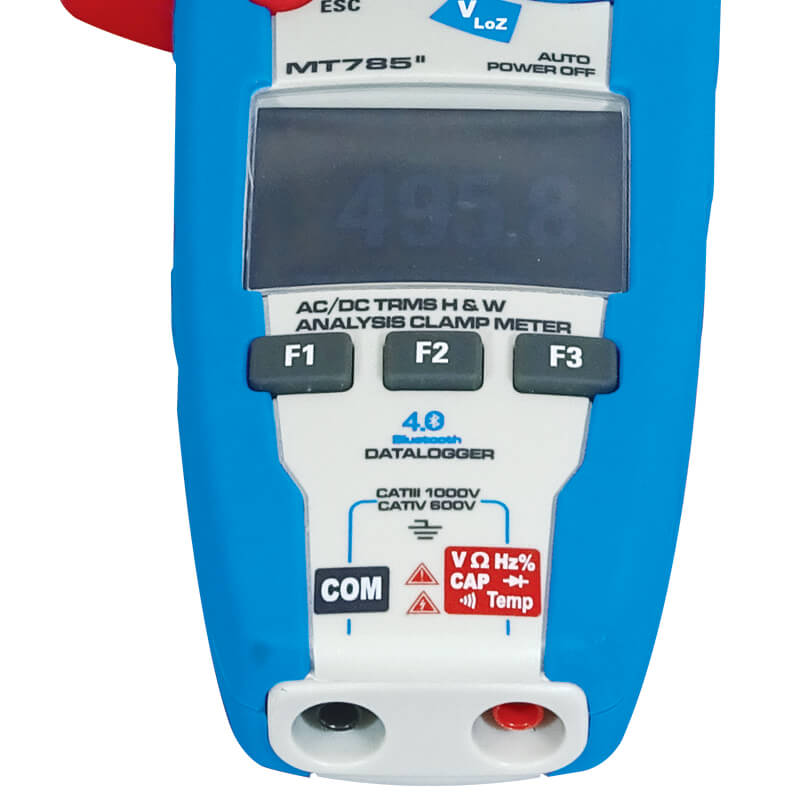

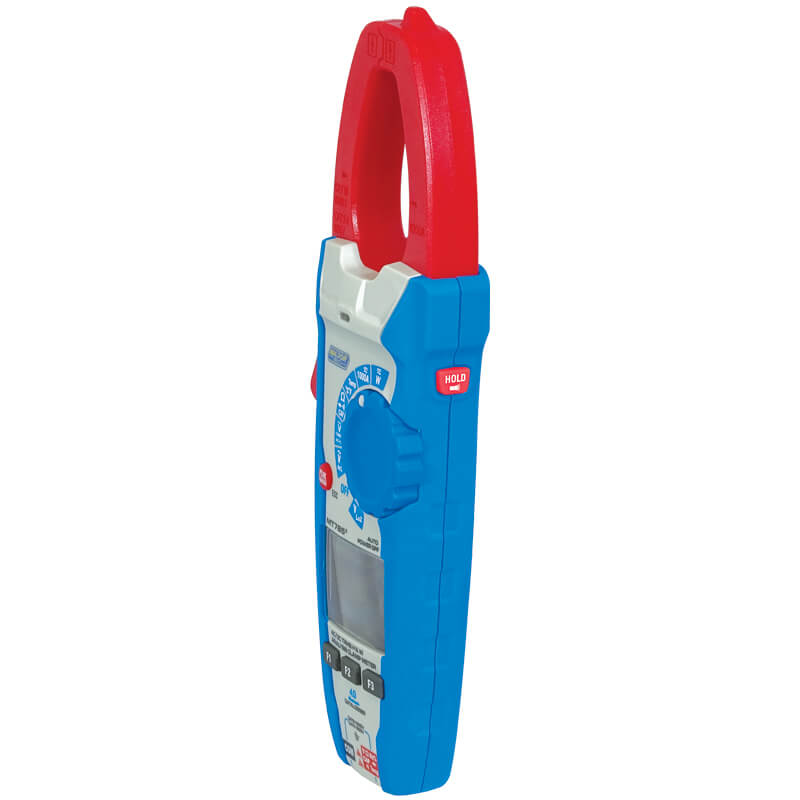

The MT785 is a CAT IV 600V, 6000 count True RMS H & W analysis clamp meter that measures up to 1000A AC/DC with an analogue bargraph indication on a TFT colour display. The MT785 simultaneously measures and displays Active, Reactive and Apparent Power and Energy and current harmonic analysis up to the 25th order with THD% calculation in a single phase. The 100ms Inrush current detects starting up currents of electric motors, input surge current, or switch-on surge currents, this is the maximum instantaneous input current drawn by an electrical device when first turned on. The meter has been designed to measures 1500V DC purposely for the Solar industry, 1000V AC, temperature, frequency, capacitance and resistance. The LowZ range function has a low pass filter to eliminate errors caused by "Ghost" voltages. The meter has a built in record and store function and displays trend charts, using the Bluetooth function the meter wirelessly transmits data to the Android or iOS mobile App allowing the user to view, save, organise and share recordings.

Specifications:

Function	Range	Resolution	Accuracy
DC Current	0.1A – 1000A	0.1A	± (2.5% + 5 Digits)
AC Current	0.1A – 1000A	0.1A	± (2.5% + 8 Digits)
DC Voltage	0.1mV – 1500V	0.1mV	± (0.5% + 8 Digits)
AC Voltage	0.001V – 1000V	1mV	± (1.5% + 5 Digits)
AC Voltage LowZ	0.001V – 1000V	1mV	± (3.0% + 40 Digits)
AC+DC TRMS Voltage	0.001V – 1000V	1mV	± (2.5% + 20 Digits)
Resistance	0.001V – 1000V	0.1Ω	± (1.5% + 5 Digits)
Frequency	0.01Hz – 9.99kHz	0.01Hz -10Hz	± (1.2% + 5 Digits)
Capacitance	0.01nF – 6000μF	0.01nF	± (3% + 8 Digits)

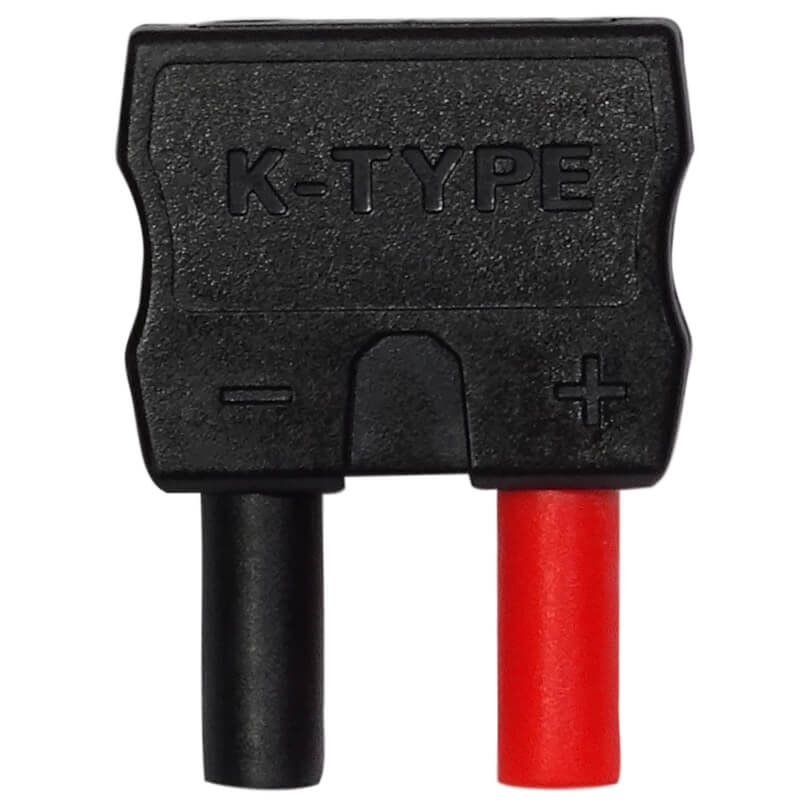

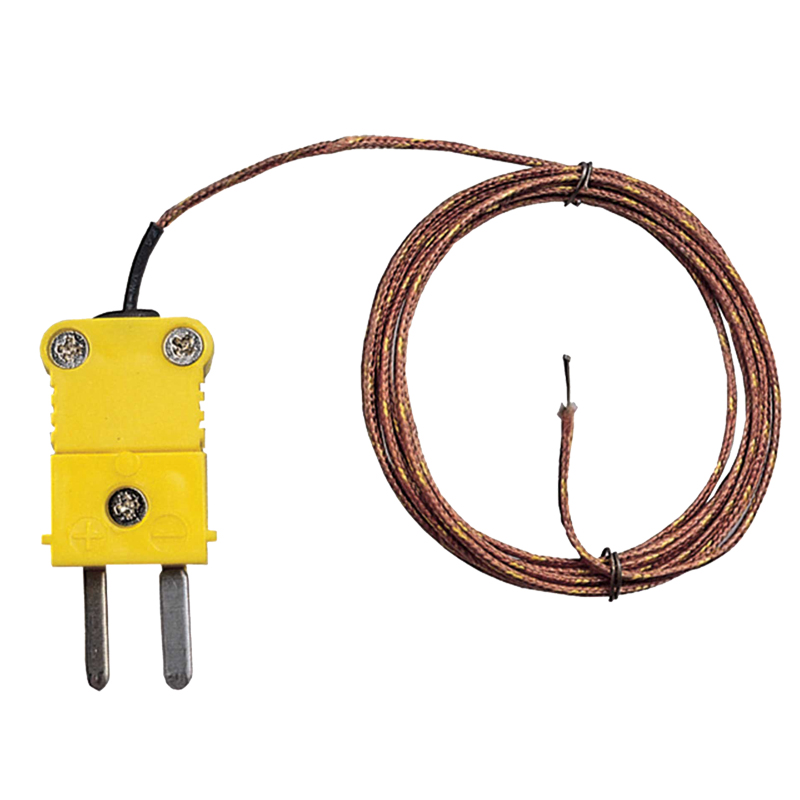

Temperature K-Type	-40 to 1000°C	0.1°C	± (1.5% + 3°C)
Duty Cycle	10% – 90%	0,1%	± (1.2% + 8 Digits)
Active Power	0.00 – 999.9kW	0.01kW	± (3.0% + 10 Digits)
Apparent Power	0.00 – 999.9kVA	0.01kVA	± (3.0% + 10 Digits)
Reactive Power	0.00 – 999.9kVAR	0.01kVAR	± (3.0% + 10 Digits)
Power factor	0.20 – 1.00	0,01	± (3%)
Active Energy resolution	0.000-99.99kW/kVA/kVAR	0.001kW/kVA/kVAR	± (3.0% + 10 Digits) kW/kVA/kVAR
True RMS Measurements	ACV, ACA
AC Bandwidth	50Hz to 60Hz
Digital Display	6000 TFT
Bargraph	Yes
Bluetooth	Yes
Records events and Trends	Yes
Data logging	Yes
Non-Contact Voltage (NCV)	Yes
Overrange indication	Yes
Continuity	Yes
Diode test	Yes
Jaw size	33mm
