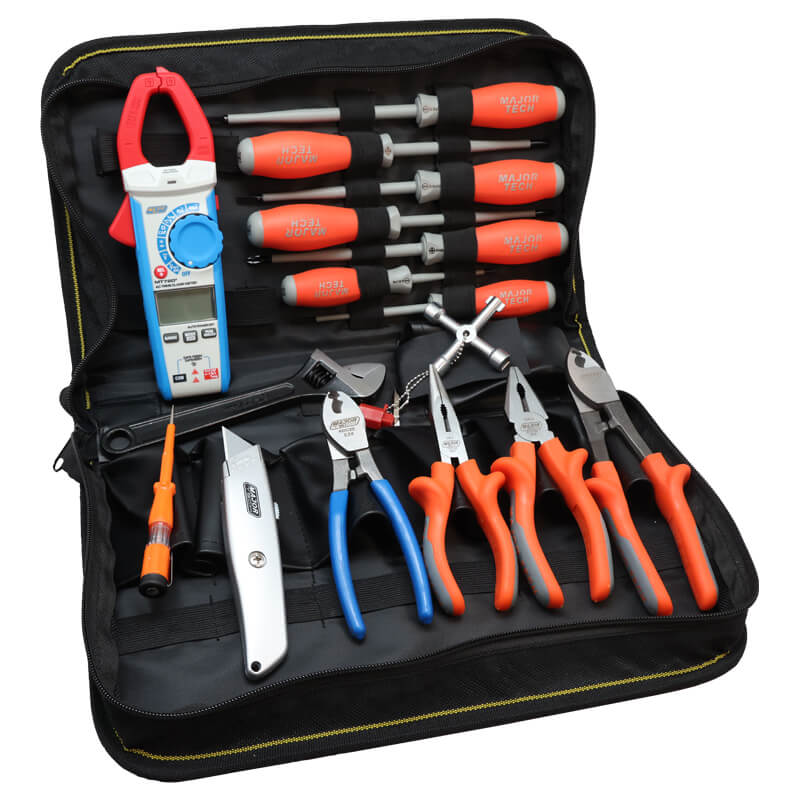

10-piece toolkit with digital clamp meter

SKU: vtk1210

  • MT720: 400A AC True RMS Clamp Meter
  • UKEY01: Universal Key
  • LP0106: 1000V 165mm Long Nose Pliers
  • EP0108: 1000V 200mm Combination Pliers
  • CS0340: 1000V 38mm² Cable Shears
  • KTK0407S: 7 Piece 1000V Screwdriver Set
  • VNS1407: 3mm Neon Screwdriver
  • KDC22: 22mm² Cable Shears
  • UK0306: Utility Knife
  • AS0308: 25mm Adjustable Spanner

$ 297.00 ex. GST $ 326.70 in. GST

Details

Empower your toolkit with the Toolkit featuring a Digital Clamp Meter, a versatile array of essential tools, and convenient organization.

  • MT720: 400A AC True RMS Clamp Meter
    • CAT III 600V and CAT II 1000V
    • 4000 count backlit LCD display
    • Ø30mm Cable Clamp size
    • Measurement of DC voltage and AC voltage up to 1000V
    • Capacitance to 100mF
    • Temperature measurement from -20⁰C to 1000⁰C
    • INRUSH Current Measurements
    • VFD – Variable Frequency Drive voltage value
    • NCV – Non-Contact Voltage Detector
    • Continuity buzzer and Diode Test
    • Peak Mode and Data Hold function
  • UKEY01: Universal Key
    • Multi-purpose key fits gas, electric cupboards, ventilation systems, stop valves
    • Made from die-cast zinc
    • Fits square, 3-square and double pin
    • Supplied with slotted and Philips bits
  •  LP0106: 1000V 165mm Long Nose Pliers
    • Protection: 1000V Safe
    • Tested: Individually tested to 10 000V
    • Size: 200mm
    • Material: 50CRV Chrome Vanadium
    • Handles: TPE rubber insulated handle grips
    • Guaranteed cutting edge hardness
    • Hardness: HRC 58-63 suitable for both hard and soft wire, steel wire, enamelled copper wire and paper
  •  EP0108: 1000V 200mm Combination Pliers
    • Protection: 1000V Safe
    • Tested: Individually tested to 10 000V
    • Size: 200mm
    • Material: 50CRV Chrome Vanadium
    • Handles: TPE rubber insulated handle grips
    • Guaranteed cutting edge hardness
    • Hardness: HRC 58-63 suitable for both hard and soft wire, steel wire, enamelled copper wire and paper
  • CSO340: 38mm² Cable Shear
    • Quality 50CRV Chrome Vanadium
    • 38mm² Max cross section
    • 7mm² Max cable diameter
    • Heavy duty 1000V TPE handles
    • Individually tested to 10 000V
    • 1000V Safe
  • KTK0407S: 1000V AC/ 1500V DC Slimline Insulated Screwdriver Set
    • Individually tested to 10 000V
    • Conforms to IEC 60900 standard
    • Suitable for live line working up to 1000V AC & 1500V DC
    • Slimline insulated sheaths similar diameter as the blades, enabling access to deep seated screws found in terminals and switchboards
    • Ergonomic designed soft Comfi-Grip is a smooth and seamless handle for maximum comfort and grip even in harsh conditions
    • Chrome-molybdenum-vanadium steel blades
    • Blades are hardened, tempered and chemically blackened with a precision-machined tip
    • Size markings on the grip and top of the grip ensure an easy selection
    • TD2 is a combined PH2 and flat screwdriver ideal for use with modern circuit breakers
  • VNS1407: 3mm Neon Screwdriver
    • Detects voltage from 110V – 250V AC
    • Electrical orange colour for high visiblity
    • Long life neon light
    • Ideal to test mains circuits to see if they are live
    • Tough all moulded construction & sealed for safety
  • KDC22: Cable Shears (22mm²)
    • Size: 160mm
    • Diameter Cable: 7mm max
    • Cross Section: 22mm² max
    • Material: High grade carbon steel
    • Handles: Insulated hand grips
    • Note: Not suitable for cuttng steel wired armoured cables
  • UK0306: Utility Knife
    • Die cast zinc alloy housing
    • Multi position blade setting
    • Heavy duty
    • Adjustable for depth of cut
    • Spare blade storage in handle
    • Convenient hole for storing
  • AS0308: 25mm Adjustable Spanner
    • High quality chrome vanadium steel
    • Professional corrosion resistant black finish
    • Deep etched metric graduations for fast pre-adjustment of size
    • Length: 200mm
    • Jaw: 25mm

Specifications:

Function Range Resolution Accuracy
MT720 Specs
AC Current 40.00A – 400.0A 10mA ±(2.5% + 8 Digits)
DC Voltage 4.000V – 1000V 1mV ±(1.0% + 3 Digits)
AC Voltage 4.000V – 1000V 1mV ±(1.2% + 5 Digits)
Resistance 400.0Ω – 40.00MΩ 0.1Ω ±(1.5% + 2 Digits)
Frequency 10Hz – 100kHz 1HZ ±(1.0% + 5 Digits)
Capacitance 99.99nF – 99.99mF 0.01nF ±(3.0% + 5 Digits)
Temperature -20 to 1000°C 0.1°C ±(3.0°C + 3 Digits)
Duty Cycle 20.0% to 80.0% 0,001 ±(1.2% + 10 Digits)
True RMS Measurements ACV, ACA
AC Bandwidth 2KHz
Digital Display 4000
Non-Contact Voltage (NCV) Yes
Overrange Indication Yes
Continuity Yes
Diode Test Yes
Jaw Size 30mm
Input Impedance >10MΩ DCV & >10MΩ VAC
Min Max Yes
Peak Hold Yes
Data Hold Yes
Back Light Yes
Enclosure Double injection moulding
Low Battery Indication Yes
Batteries 3 x AAA
Weight 305g
Dimensions 220 x 80 x 39
mm
Safety Specs IEC61010-1 CAT III 600V

Safety Rating
